IFM EVW008 is a 5 m angled M12 connecting cable with PUR cable construction, gold-plated contacts and weld-slag-resistant protection for reliable connections in welding automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

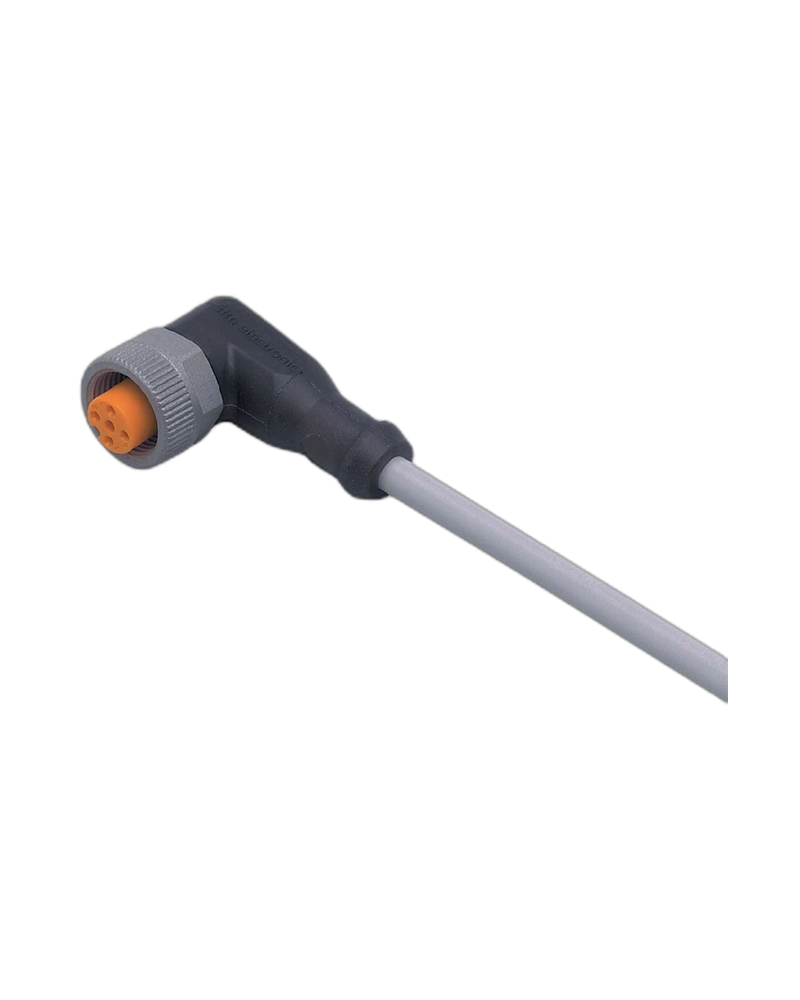

The IFM EVW008 ADOAH043SCS0005T04 provides a 5 m connection length for welding and industrial automation applications. Its angled M12 female connector supports practical cable routing where installation space is limited.
The cable is manufactured from flexible PUR and is resistant to welding sparks. Its halogen-free and silicone-free construction supports use in demanding industrial environments.
Gold-plated contacts provide reliable electrical performance, while the anti-spatter coated brass nut and FKM sealing provide additional protection against harsh environmental conditions.
The cable is suitable for drag-chain applications and supports more than two million bending cycles, making it suitable for moving machinery and robotic systems.
5 m Connection Length: Offers greater flexibility for machine installations.
Angled M12 Design: Helps improve cable routing in restricted areas.
Weld-Spark Resistant: Suitable for welding environments.
High IP Protection: IP65, IP67, IP68 and IP69K ratings support harsh conditions.
Reliable Electrical Connection: Gold-plated contacts provide stable signal transmission.
Long Bending Life: Supports more than two million bending cycles.
Robotic welding
Automotive production
Industrial robots
Welding equipment
Machine automation
Sensor and actuator connections
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVW008 |
| Part Number | ADOAH043SCS0005T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Electrical Design | PNP |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
