IFM EVW007 is a 2 m angled M12 connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant design for reliable sensor connections in welding and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

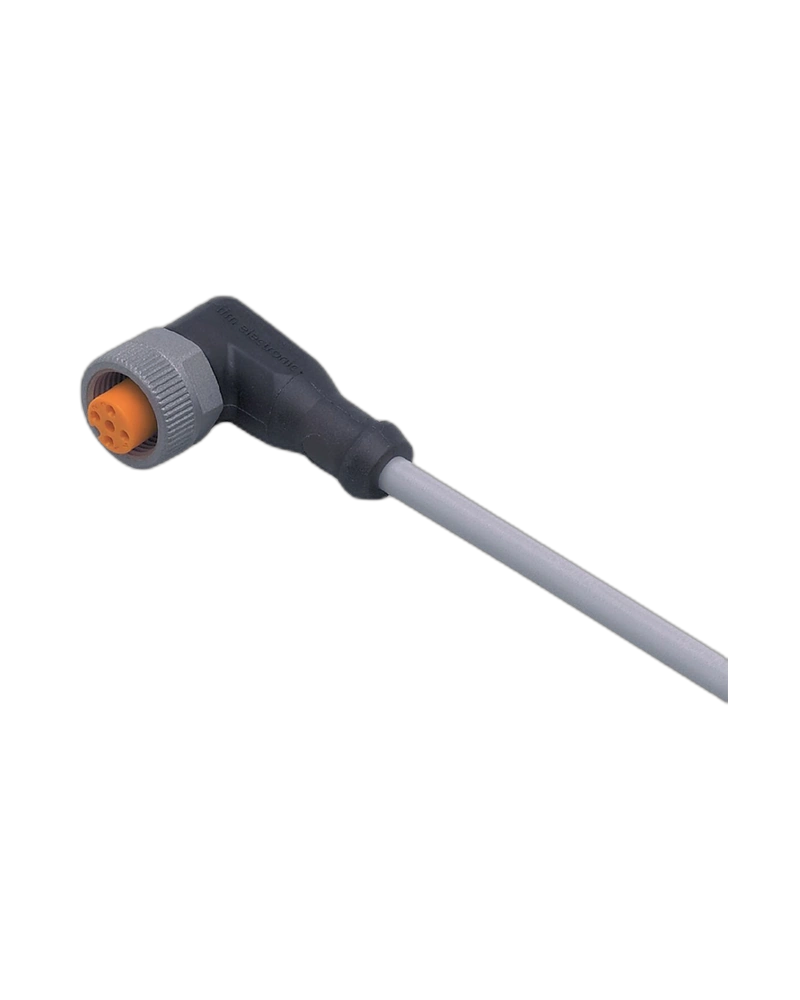

The IFM EVW007 ADOAH043SCS0002T04 is a compact M12 connecting cable designed for welding applications and demanding industrial automation environments. Its angled female connector helps route the cable efficiently around machine components and confined spaces.
The PUR cable is resistant to welding sparks and designed for dynamic applications. Gold-plated contacts support reliable signal transmission, while the anti-spatter coated brass nut improves durability in welding environments.
The EVW007 offers IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. Its robust construction is designed to withstand vibration, shock and repeated bending.
Compact 2 m Length: Suitable for short-distance sensor connections.
Angled Connector: Helps simplify cable routing around machinery.
Welding Resistant: PUR cable construction provides resistance to welding sparks.
Reliable Contacts: Gold-plated contacts support stable electrical connectivity.
High Environmental Protection: IP65 to IP69K protection supports harsh industrial conditions.
Dynamic Movement: Suitable for drag-chain applications.
Welding robots
Industrial automation
Automotive assembly
Welding machinery
Machine tools
Sensor connections
Robotic production systems
| Specification | Details |
|---|---|
| Product Model | EVW007 |
| Part Number | ADOAH043SCS0002T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Electrical Design | PNP |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
