IFM EVW006 is a 10 m angled M12 connecting cable with a PUR jacket, gold-plated contacts and weld-slag-resistant construction for reliable sensor connections in welding and demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

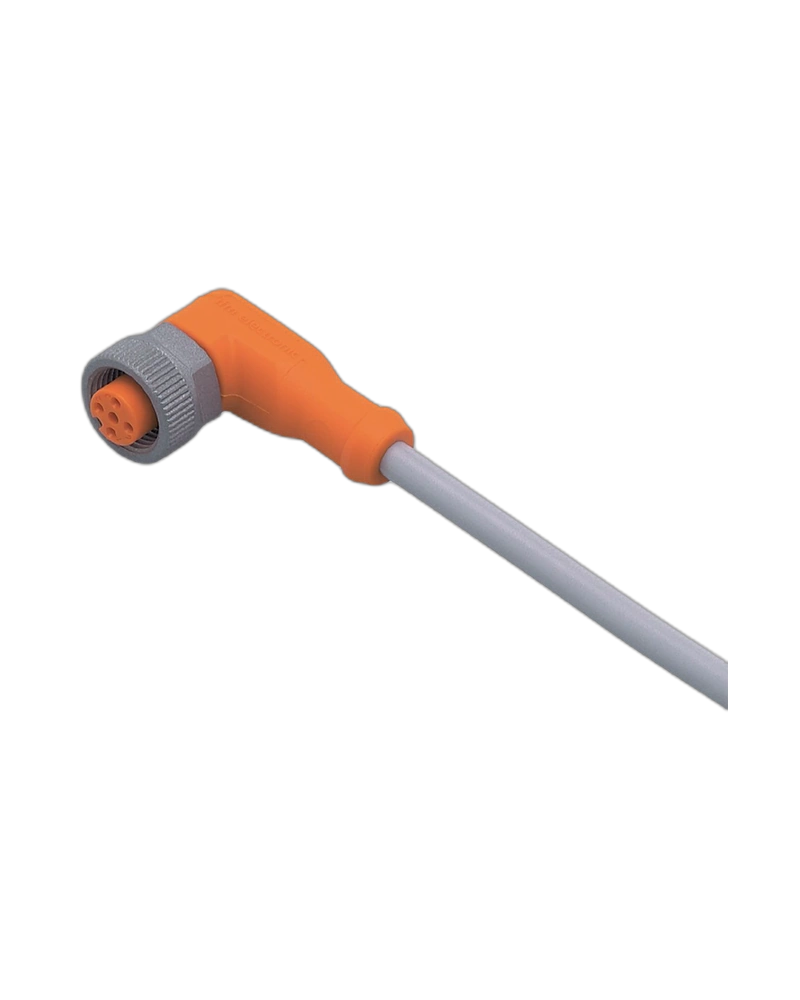

The IFM EVW006 ADOAH040SCS0010T04 is a robust connecting cable designed for sensor and actuator connections in welding and harsh industrial environments. It features an angled M12 female connector that helps simplify cable routing around machinery and in restricted installation spaces.
The 10 m PUR cable provides extended connection reach while maintaining flexibility for dynamic industrial applications. The cable is halogen-free, silicone-free and resistant to welding sparks, making it particularly suitable for welding automation systems.
The connector incorporates gold-plated contacts for reliable electrical connectivity, while the brass nut with anti-spatter coating helps protect the connection from welding residues. FKM sealing and IP65, IP67, IP68 and IP69K protection provide dependable environmental protection.
The EVW006 is also suitable for drag-chain applications and supports more than two million bending cycles. Its robust construction helps withstand vibration, shock and repeated mechanical movement.
Long 10 m Cable: Provides extended reach for large machines and production systems.
Angled M12 Connector: Enables easier cable routing in compact installations.
Weld-Slag Resistant: Designed to withstand welding sparks and industrial welding conditions.
High Protection Rating: IP65, IP67, IP68 and IP69K protection supports demanding environments.
Reliable Signal Transmission: Gold-plated contacts provide dependable electrical connectivity.
Dynamic Application Support: Suitable for drag-chain installations and repeated movement.
Robotic welding systems
Automotive manufacturing
Welding machines
Industrial automation
Machine tools
Sensor and actuator connections
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW006 |
| Part Number | ADOAH040SCS0010T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
