IFM EVW005 is a 5 m PUR connecting cable with an angled M12 female socket, gold-plated contacts and weld-slag-resistant construction for reliable connections in welding and demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

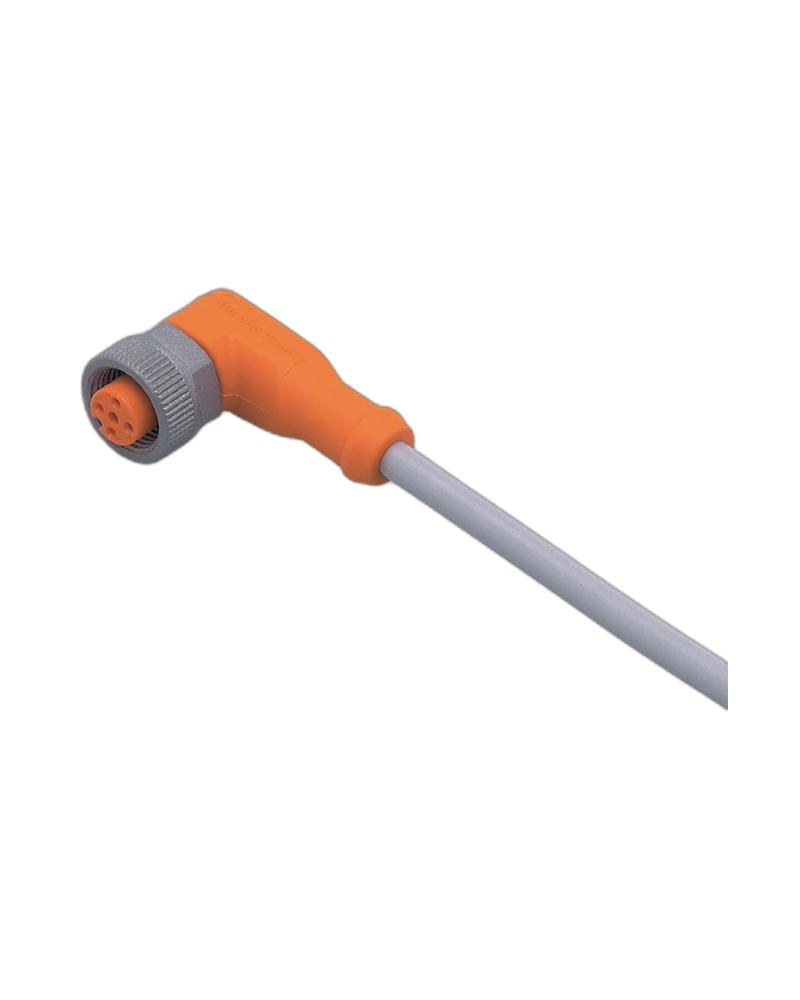

The IFM EVW005 ADOAH040SCS0005T04 is a robust connecting cable designed for industrial welding and automation applications. Its 5 m PUR cable provides extended reach, while the angled M12 female connector enables efficient routing in compact machine installations.
The cable is designed to resist welding sparks and features a special anti-spatter connector construction. Gold-plated contacts provide reliable electrical connectivity, while the FKM sealing material supports protection in harsh operating environments.
The EVW005 supports drag-chain applications and is designed for repeated bending. Its IP65, IP67, IP68 and IP69K protection ratings make it suitable for demanding industrial environments.
Extended 5 m Cable Length: Provides greater flexibility for machine and sensor installations.
Angled M12 Connection: Helps simplify routing around machine structures.
Welding-Environment Suitable: Weld-slag-resistant cable and connector construction improves durability.
High Protection Rating: IP65 to IP69K protection supports harsh industrial conditions.
Reliable Electrical Performance: Gold-plated contacts help maintain stable signal transmission.
Dynamic Movement Support: Drag-chain suitability enables use in moving machine applications.
Robotic welding systems
Automotive manufacturing
Welding machines
Industrial automation
Machine tools
Sensor and actuator connections
Conveyor and production systems
| Specification | Details |
|---|---|
| Product Model | EVW005 |
| Part Number | ADOAH040SCS0005T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 179.7 g |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
