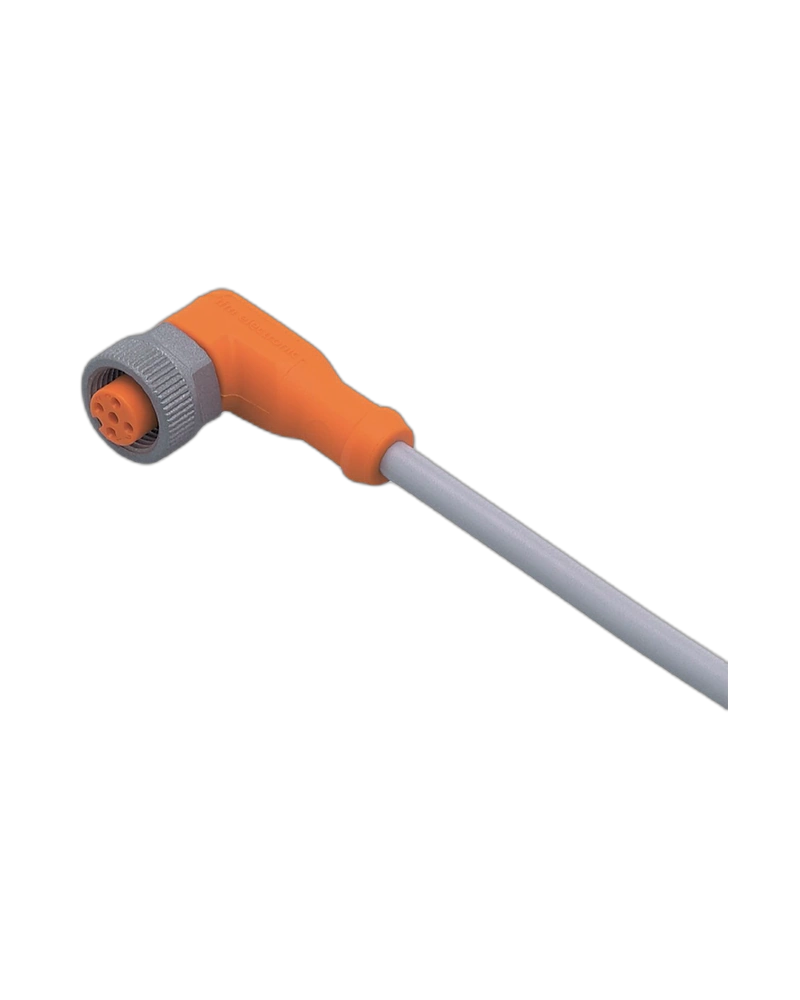

IFM EVW004 is a 2 m PUR connecting cable with an angled M12 female socket, gold-plated contacts and weld-slag-resistant construction for reliable sensor connections in welding and harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW004 ADOAH040SCS0002T04 is designed for welding applications where reliable sensor connectivity and compact cable routing are required. Its angled M12 female connector allows the cable to be routed efficiently around machine structures and confined spaces.
The 2 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. The connector uses gold-plated contacts and a special anti-spatter brass nut to improve reliability in welding environments.
With IP65, IP67, IP68 and IP69K protection, the EVW004 is suitable for harsh industrial conditions. Its construction supports more than two million bending cycles and repeated movement.
Angled Connector Design: Helps simplify cable routing in restricted spaces.
Weld-Slag Resistant: Suitable for demanding welding environments.
Flexible PUR Cable: Supports repeated movement and dynamic applications.
High Protection: IP65 to IP69K ratings help protect against environmental contamination.
Reliable Electrical Contact: Gold-plated contacts provide stable connectivity.
Long Bending Life: More than two million bending cycles support long-term operation.
Welding robots
Automotive assembly
Industrial welding equipment
Robotic automation
Machine tools
Sensor connections
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW004 |
| Part Number | ADOAH040SCS0002T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 85.5 g |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
