IFM EVW003 is a 10 m PUR connecting cable with straight M12 female socket, gold-plated contacts and weld-slag-resistant construction for long-distance sensor connections in welding and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

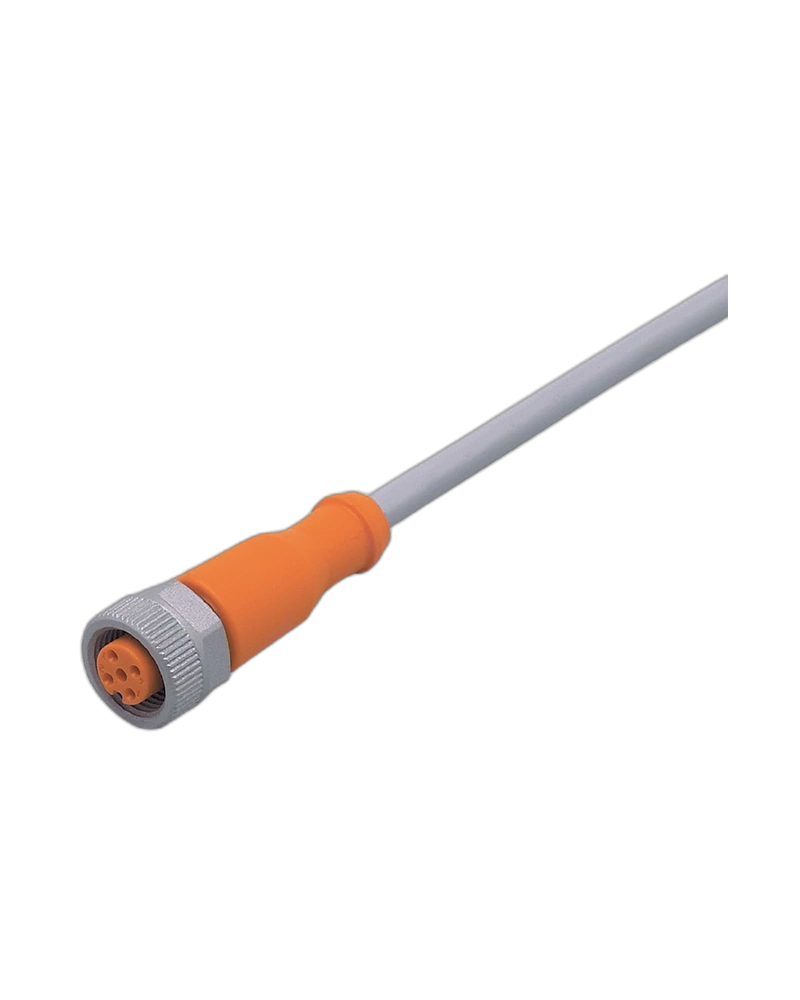

The IFM EVW003 ADOGH040SCS0010T04 provides a long 10 m connection length for industrial automation systems where sensors and control equipment are positioned at greater distances. It uses a straight M12 female connector and a durable PUR cable.
The cable is designed for welding applications and features resistance to welding sparks. Its halogen-free and silicone-free construction supports demanding industrial environments, while the gold-plated contacts provide reliable electrical performance.
The EVW003 is suitable for drag-chain applications and can withstand more than two million bending cycles. Its IP65, IP67, IP68 and IP69K protection makes it suitable for harsh environments involving dust, water and intensive cleaning.
Long 10 m Connection: Ideal for installations requiring extended cable reach.
Weld-Slag Resistant: Designed specifically for welding environments.
High Flexibility: PUR cable construction supports dynamic applications.
Excellent Protection: IP65 to IP69K ratings provide comprehensive environmental protection.
High Bending Life: More than two million bending cycles support long service life.
Secure M12 Interface: Gold-plated contacts and robust locking improve connection reliability.
Robotic welding systems
Automotive manufacturing
Industrial robots
Packaging machinery
Sensor networks
Machine automation
Conveyor systems
| Specification | Details |
|---|---|
| Product Model | EVW003 |
| Part Number | ADOGH040SCS0010T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 329.5 g |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
