IFM EVW002 is a 5 m PUR connecting cable with straight M12 female socket, gold-plated contacts and weld-slag-resistant construction for reliable connections in welding and harsh industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

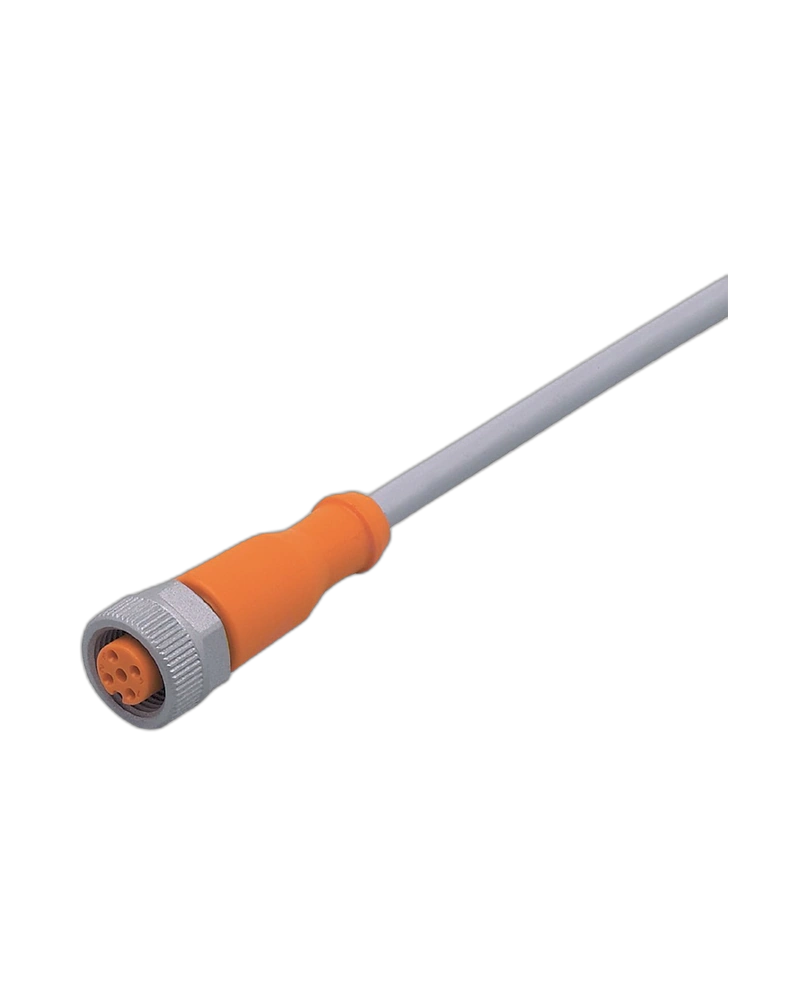

The IFM EVW002 ADOGH040SCS0005T04 is a robust M12 connecting cable developed for welding applications and demanding industrial environments. Its 5 m PUR cable provides extended connection reach while maintaining flexibility for dynamic installations.
The straight M12 female socket includes gold-plated contacts and a special weld-slag-resistant construction. The coated nut improves resistance to welding spatter, while the coupling ring locking mechanism helps protect the connection from vibration and shock.
The cable is halogen-free and silicone-free and provides IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications and supports more than two million bending cycles.
Extended 5 m Reach: Suitable for machines requiring longer sensor connections.
Welding Application Ready: Weld-slag-resistant construction supports welding environments.
Flexible PUR Cable: Designed for dynamic industrial applications.
High Protection Rating: IP65 to IP69K protection supports harsh environments.
Long Mechanical Life: More than two million bending cycles support repeated movement.
Reliable M12 Connection: Gold-plated contacts support stable electrical performance.
Robotic welding systems
Automotive production lines
Welding machines
Industrial robots
Machine automation
Sensor and actuator connections
Heavy-duty manufacturing equipment
| Specification | Details |
|---|---|
| Product Model | EVW002 |
| Part Number | ADOGH040SCS0005T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 174.8 g |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
