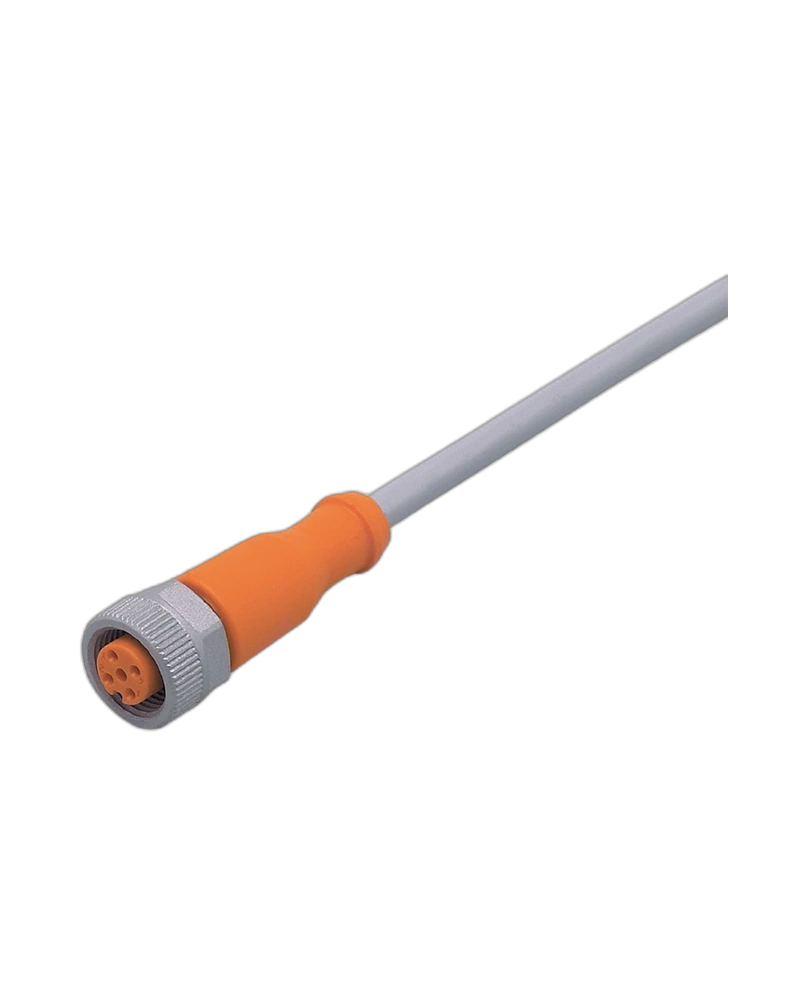

IFM EVW001 is a 2 m PUR connecting cable with straight M12 female socket, gold-plated contacts and weld-slag-resistant construction for demanding welding and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW001 ADOGH040SCS0002T04 is designed for industrial automation systems where cables are exposed to welding sparks, mechanical movement and harsh operating conditions. It features a straight M12 female socket and a 2 m PUR cable.
The cable is silicone-free and halogen-free, with gold-plated contacts for reliable electrical connectivity. Its special weld-slag-resistant construction and coated nut make it particularly suitable for welding applications.
The EVW001 provides IP65, IP67, IP68 and IP69K protection and supports drag-chain operation. It can withstand more than two million bending cycles, making it suitable for repeated dynamic movement.
Weld-Slag Resistance: Designed to withstand welding-related environmental conditions.
PUR Cable Construction: Provides durability and flexibility in industrial applications.
Gold-Plated Contacts: Supports reliable electrical signal transmission.
High IP Protection: Suitable for demanding industrial environments.
Excellent Flexibility: Designed for drag-chain applications.
Vibration and Shock Resistance: Locking mechanism helps maintain connection stability.
Welding robots
Automotive manufacturing
Welding machinery
Industrial automation
Robotic assembly systems
Machine tools
Material-handling equipment
| Specification | Details |
|---|---|
| Product Model | EVW001 |
| Part Number | ADOGH040SCS0002T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
