IFM EVT650 is an 8 m M12 connection cable with a straight male and angled female connector, gold-plated contacts and IP65 to IP69K protection for hygienic and wet industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

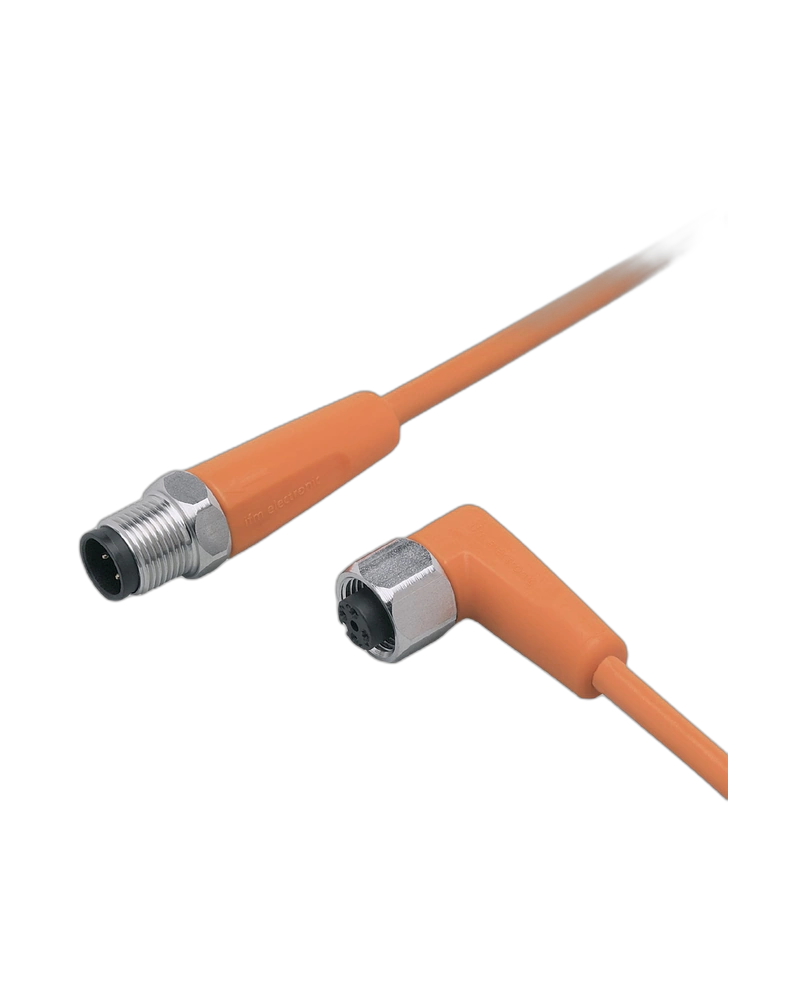

The IFM EVT650 VDOAH040VAS0008E04STGH040VAS is a robust connection cable designed for reliable M12 device interconnection in hygienic and wet industrial environments. Its combination of a straight male connector and angled female connector provides practical cable routing where space or installation direction is important.
The cable is 8 m long and constructed with orange PVC material and four 0.34 mm² conductors. Gold-plated contacts provide dependable electrical performance, while stainless-steel 316L locking components provide secure mechanical connections.
The EVT650 supports drag-chain applications and is designed to withstand repeated bending. With IP65, IP67, IP68 and IP69K protection, it is suitable for demanding automation environments.
Long 8 m Cable: Provides greater installation flexibility between connected devices.
Angled Female Connector: Helps simplify cable routing around machinery and restricted spaces.
Reliable M12 Connectivity: Provides secure connections for compatible industrial devices.
High IP Protection: Suitable for wet, dusty and demanding industrial environments.
Drag-Chain Suitable: Supports repeated cable movement.
Strong Mechanical Construction: Stainless-steel locking components improve durability.
Food-processing machinery
Industrial automation
Packaging systems
M12 device interconnection
Conveyor systems
Machine-building applications
Wet and hygienic environments
| Specification | Details |
|---|---|
| Product Model | EVT650 |
| Part Number | VDOAH040VAS0008E04STGH040VAS |
| Product Type | Connection cable / jumper cable |
| Male Connector | M12 straight |
| Female Connector | M12 angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 8 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Sealing Material | EPDM |
| Locking Material | Stainless steel 316L |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, gold-plated contacts |
