IFM EVT649 is a 7 m M12 connection cable with straight male and female connectors, gold-plated contacts, stainless-steel locking and IP65 to IP69K protection for hygienic industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

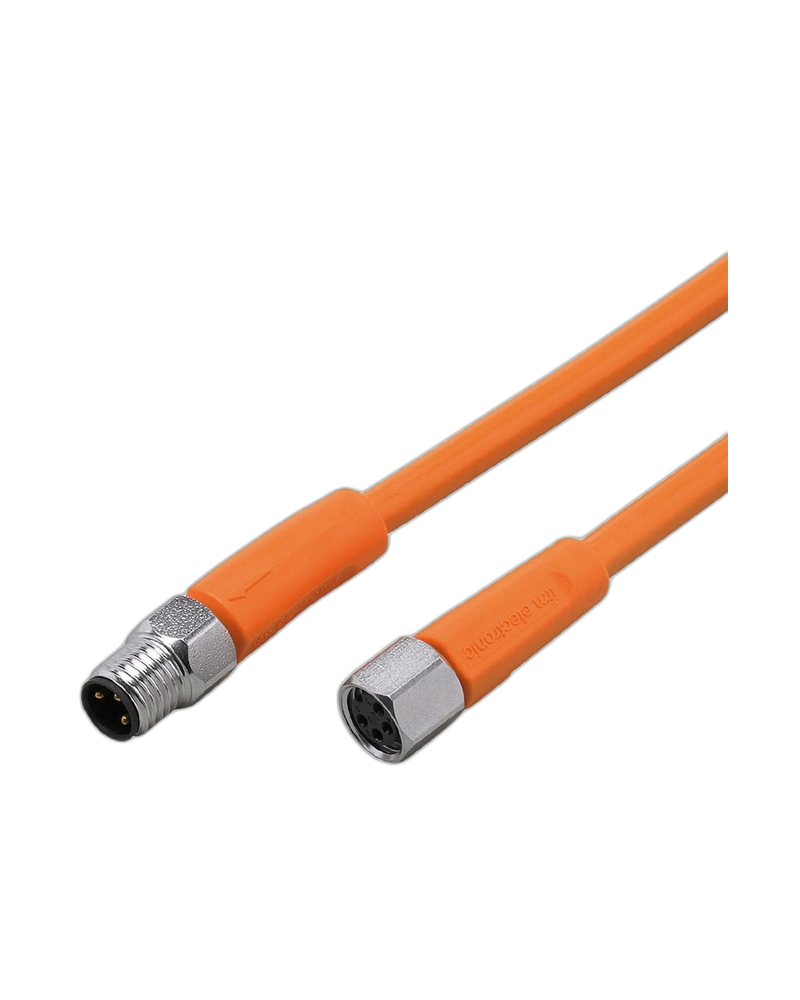

The IFM EVT649 VDOGH040VAS0007E04STGH040VAS is a jumper-style connection cable designed to provide reliable connections between M12 devices in industrial automation systems. It features straight M12 connectors at both ends, making it suitable for extending or interconnecting compatible sensor and actuator connections.
The 7 m orange PVC cable uses four 0.34 mm² conductors and provides dependable electrical performance. Gold-plated contacts help maintain stable signal transmission, while stainless-steel 316L locking components provide strong mechanical retention.
The EVT649 is designed for hygienic and wet areas in food-processing environments and offers IP65, IP67, IP68 and IP69K protection. It is also suitable for drag-chain applications, supporting more than one million bending cycles.
Extended Connection Length: 7 m cable length supports installations where devices are positioned farther apart.
Secure M12 Connections: Straight connectors provide simple and reliable device-to-device connections.
High Environmental Protection: IP65 to IP69K protection supports demanding industrial environments.
Reliable Electrical Performance: Gold-plated contacts support consistent signal transmission.
Durable Mechanical Design: Stainless-steel locking components provide strong connection security.
Dynamic Application Capability: Drag-chain suitability supports repeated cable movement.
Industrial automation systems
Food-processing machinery
M12 sensor networks
Machine interconnection
Conveyor systems
Packaging machinery
Hygienic automation equipment
| Specification | Details |
|---|---|
| Product Model | EVT649 |
| Part Number | VDOGH040VAS0007E04STGH040VAS |
| Product Type | Connection cable / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 7 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Sealing Material | EPDM |
| Locking Material | Stainless steel 316L |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, gold-plated contacts |
