IFM EVT647 is a 2.2 m M8 connecting cable with a straight male connector, gold-plated contacts and IP65 to IP69K protection, designed for hygienic and wet food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

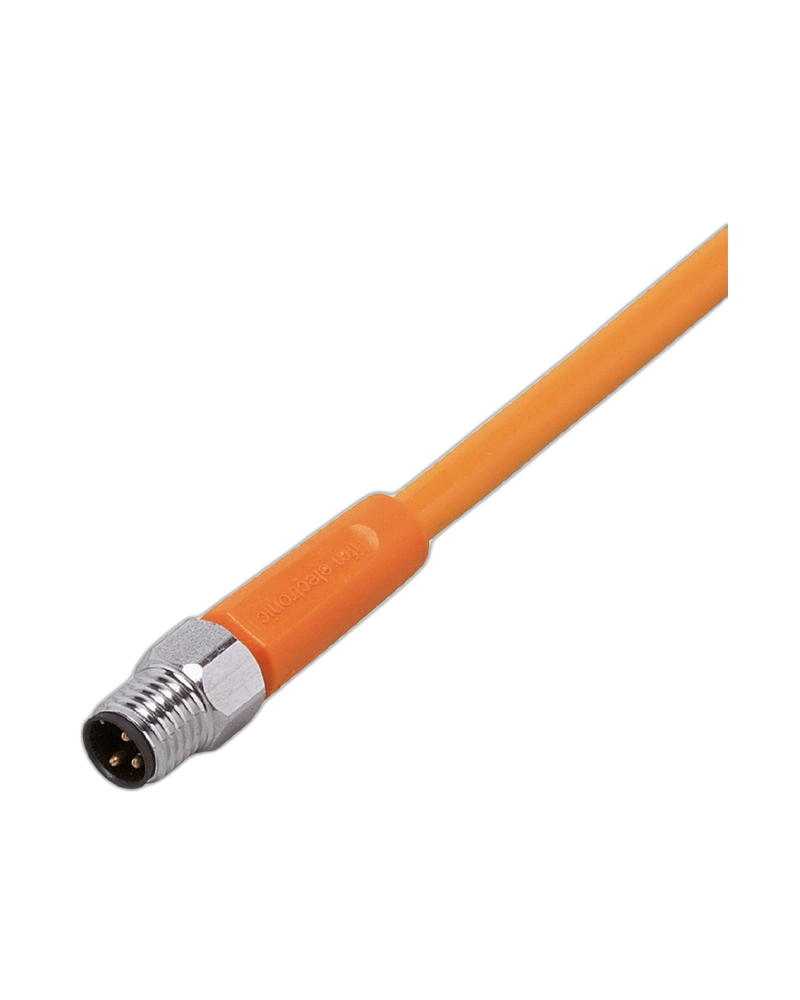

The IFM EVT647 ASTGF030VAS02,2E03 is a compact connecting cable with a straight M8 male connector designed for reliable sensor connectivity in hygienic and wet areas. Its 2.2 m orange PVC cable provides a practical connection length for compact automation installations.
The connector uses gold-plated contacts and a stainless-steel 316L locking nut for dependable electrical and mechanical performance. The cable is silicone-free and suitable for drag-chain applications.
With IP65, IP67, IP68 and IP69K protection, the EVT647 is designed to withstand demanding environmental conditions. It can operate across a temperature range of -25 to +80 °C and supports repeated movement in dynamic installations.
Compact M8 Connection: Ideal for sensors and devices using M8 connections.
Reliable Contact Performance: Gold-plated contacts support stable signal transmission.
Excellent Environmental Protection: IP65 to IP69K ratings provide protection against moisture and contaminants.
Dynamic Installation Support: Suitable for drag-chain applications.
Hygienic Design: Silicone-free construction supports food-industry applications.
Robust Locking: Stainless-steel locking components improve connection durability.
Food-processing machinery
Compact automation equipment
M8 sensor connections
Packaging systems
Conveyor equipment
Machine automation
Wet-area installations
| Specification | Details |
|---|---|
| Product Model | EVT647 |
| Part Number | ASTGF030VAS02,2E03 |
| Product Type | Connecting cable with plug |
| Connector | 1 × M8, straight |
| Coding | A-coded |
| Connector Gender | Male |
| Contacts | Gold-plated |
| Cable Length | 2.2 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Load | 3 A |
| Protection Class | III |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | 5 to +80 °C |
| Housing Material | PVC |
| Locking Material | Stainless steel 316L |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.3–0.5 Nm |
| Special Features | Silicone-free, gold-plated contacts |
