IFM EVT636 is a 4 m connecting cable featuring an angled M12 socket, gold-plated contacts, stainless-steel locking and IP65 to IP69K protection for reliable sensor connections in hygienic industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

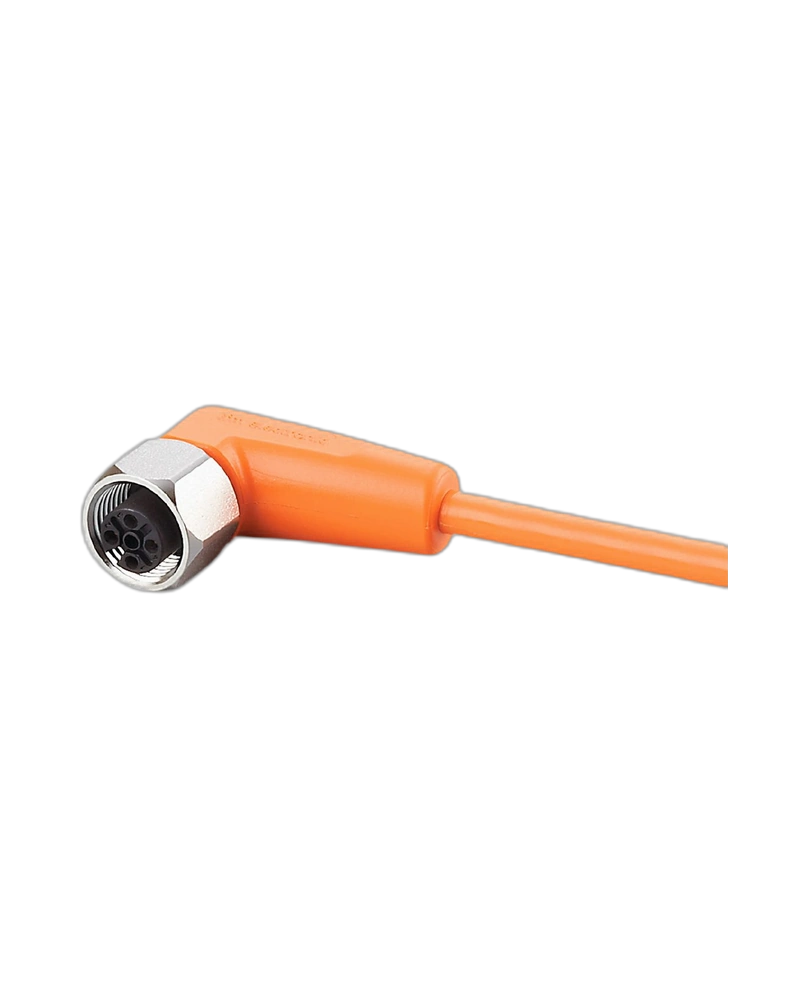

The IFM EVT636 ADOAH040VAS0004E04 is a high-performance connecting cable designed for sensor and actuator connections in hygienic and wet industrial environments. The cable incorporates an angled M12 female connector, making it particularly useful where installation space is restricted or cable routing requires a compact connection.
The cable uses a 4 m orange PVC construction with four 0.34 mm² conductors and gold-plated contacts. Its stainless-steel locking mechanism and EPDM sealing provide a secure and durable connection under industrial operating conditions.
The EVT636 supports drag-chain applications and is designed to withstand repeated bending. Its protection ratings of IP65, IP67, IP68 and IP69K make it suitable for applications exposed to dust, water and high-pressure cleaning conditions.
Space-Saving Angled Design: The angled M12 connector simplifies cable routing in confined installation areas.
Reliable Electrical Connection: Gold-plated contacts provide stable electrical performance.
High Protection Rating: Multiple IP protection levels support harsh industrial environments.
Durable Construction: Stainless-steel locking components improve mechanical reliability.
Flexible Dynamic Operation: Suitable for drag-chain applications and repeated movement.
Hygienic Application Support: Suitable for wet and hygienic areas in food-processing environments.
Food processing equipment
Packaging machines
Sensor and actuator connections
Conveyor systems
Industrial automation
Machine-building applications
Wet and hygienic production areas
| Specification | Details |
|---|---|
| Product Model | EVT636 |
| Part Number | ADOAH040VAS0004E04 |
| Product Type | Connecting cable with socket |
| Connector | 1 × M12, angled |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 4 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Sealing | EPDM |
| Locking | Stainless steel 316L |
| Drag Chain Suitability | Yes |
| Bending Radius | Minimum 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, gold-plated contacts |
