IFM EVT635 is a hygienic-area connecting cable with M12 straight socket, gold-plated contacts and a 4 m PVC cable. It provides reliable sealing, high IP protection and drag-chain suitability for food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

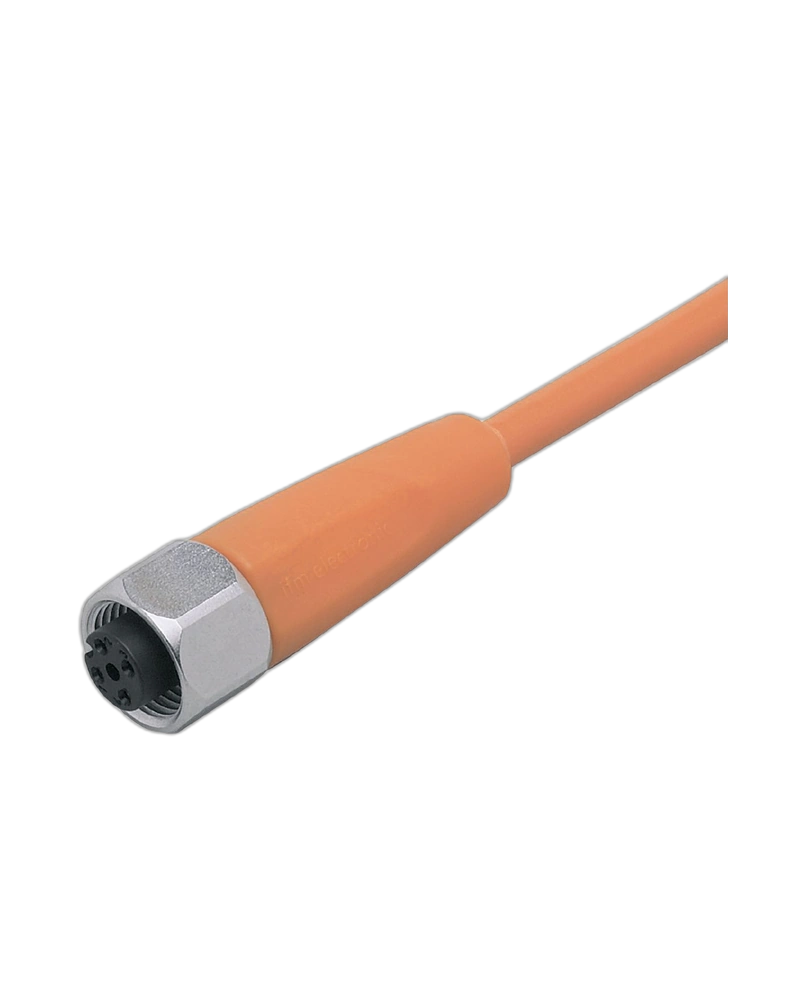

The IFM EVT635 ADOGH040VAS0004E04 is a robust connecting cable designed for reliable sensor and actuator connections in hygienic and wet areas of the food industry. It features a straight M12 female connector with gold-plated contacts and a 4 m orange PVC cable for dependable electrical connectivity.
The cable is designed for demanding industrial environments where moisture, vibration and repeated movement can affect conventional connections. Its stainless-steel locking nut, EPDM sealing and high IP65, IP67, IP68 and IP69K protection help maintain a secure connection in harsh operating conditions.
The EVT635 is also suitable for drag-chain applications. Its flexible construction supports repeated bending, with a minimum bending radius of 10 times the cable diameter and more than one million bending cycles. The coupling mechanism provides resistance against vibration and shock while the mechanical end stop helps protect the O-ring from damage.
With silicone-free construction and gold-plated contacts, the EVT635 provides a reliable connection solution for industrial automation, food-processing equipment and sensor-based systems.
Reliable Hygienic Connection: Designed specifically for hygienic and wet areas in food-industry applications.
High Environmental Protection: IP65, IP67, IP68 and IP69K protection supports demanding industrial environments.
Excellent Electrical Contact: Gold-plated contacts provide reliable electrical conductivity and long-term connection performance.
Drag-Chain Suitable: Designed for dynamic installations with repeated cable movement.
Strong Mechanical Protection: Stainless-steel locking components provide improved resistance to vibration and shock.
Reliable Sealing: EPDM sealing helps protect the connection against moisture and environmental contamination.
Food processing machinery
Packaging machinery
Hygienic automation systems
Industrial sensor connections
Conveyor and material-handling systems
Machine automation
Wet-area industrial installations
| Specification | Details |
|---|---|
| Product Model | EVT635 |
| Part Number | ADOGH040VAS0004E04 |
| Product Type | Connecting cable with socket |
| Application | Hygienic and wet areas in food industry |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 4 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Load | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Sealing Material | EPDM |
| Locking Material | Stainless steel 316L |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, gold-plated contacts |
