IFM EVT369 is a 25 m M12 3-pole PNP connection cable with angled socket, LED status indication, gold-plated contacts and IP69K protection for hygienic industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

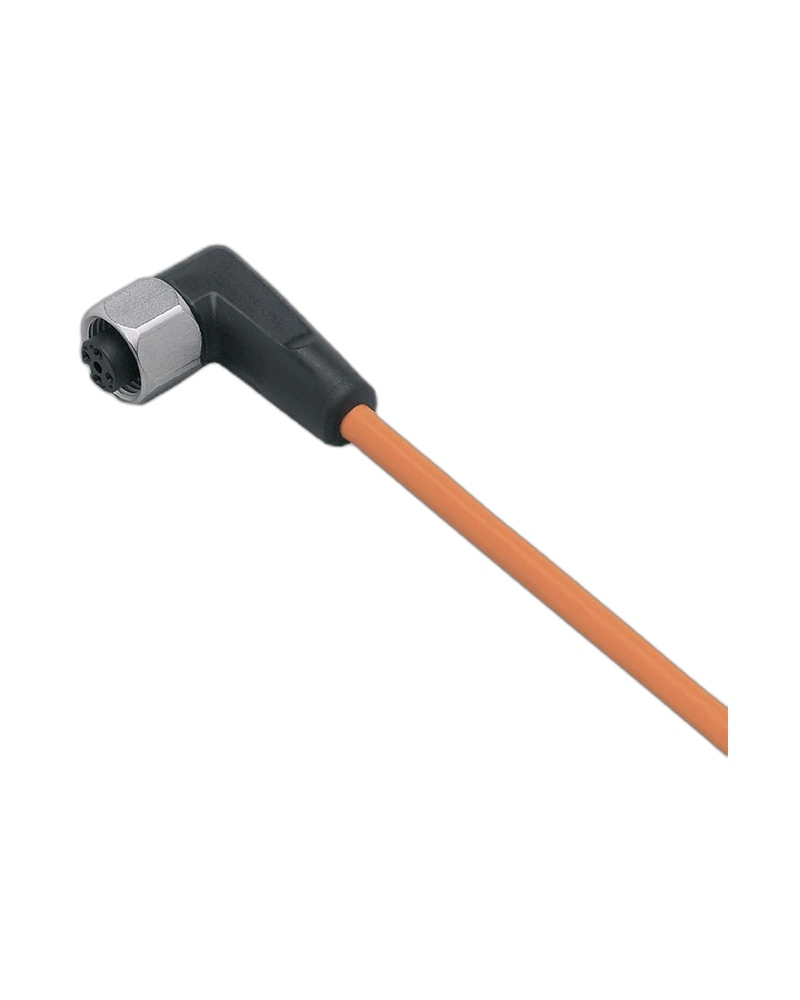

The IFM EVT369 is a long-length M12 connection cable designed for reliable sensor and automation connections in hygienic and wet industrial environments.
The 25 m orange PVC cable provides extended installation reach, while the angled M12 female connector supports efficient cable routing. The 3-pole A-coded design is suitable for compatible PNP switching applications.
Integrated yellow output-status and green operating LEDs provide convenient visual feedback. Gold-plated contacts support reliable electrical performance, while the stainless-steel 316L coupling nut and EPDM sealing provide robust mechanical and environmental protection.
The cable is suitable for drag-chain applications and provides IP65/IP67/IP68/IP69K protection.
25 m Extended Length: Suitable for large automation installations.
PNP Electrical Design: Supports compatible PNP sensor systems.
Angled M12 Socket: Helps improve cable routing.
LED Status Indication: Provides quick visual operating feedback.
Gold-Plated Contacts: Supports reliable electrical connectivity.
316L Stainless Steel Nut: Provides robust and hygienic construction.
IP69K Protection: Suitable for demanding washdown environments.
Drag-Chain Suitable: Supports repeated cable movement.
Food processing machinery
Hygienic automation
Packaging systems
PNP sensor installations
Wet-area equipment
Industrial process automation
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVT369 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 25 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | PNP |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC black transparent |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Output Status LED | Yellow |
| Operation LED | Green |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
