IFM EVT368 is a 10 m M12 3-pole PNP connection cable with angled socket, LED indication, gold-plated contacts and IP69K protection for hygienic automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

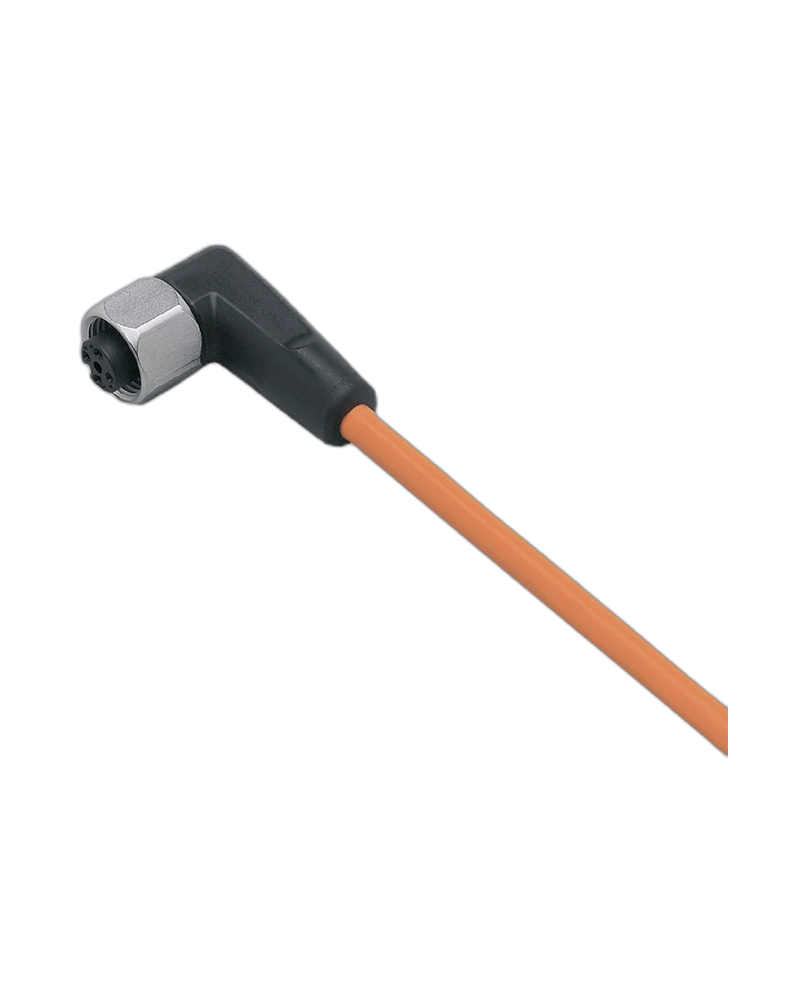

The IFM EVT368 is a 10 m M12 connection cable designed for hygienic and wet-area automation applications. It features an angled M12 socket and a 3-pole A-coded connection for compatible sensors and automation equipment.
The cable uses an orange PVC sheath with three 0.34 mm² conductors. Its PNP electrical design supports suitable switching applications, while integrated yellow and green LEDs provide visible indication of switching and operating status.
The cable is silicone-free and uses gold-plated contacts, EPDM sealing and a stainless-steel 316L coupling nut. IP65/IP67/IP68/IP69K protection makes it suitable for demanding industrial and washdown environments.
10 m Cable Length: Provides extended installation range.
PNP Electrical Design: Suitable for compatible PNP sensor applications.
Angled M12 Connector: Supports efficient cable routing.
LED Status Indication: Provides clear visual operating feedback.
Gold-Plated Contacts: Supports reliable signal transmission.
IP69K Protection: Suitable for wet and washdown environments.
Drag-Chain Suitable: Supports dynamic applications.
Food processing
Hygienic automation
Packaging systems
PNP sensor connections
Wet-area machinery
Industrial production
Process automation
| Specification | Details |
|---|---|
| Product Model | EVT368 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 10 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | PNP |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Output LED | Yellow |
| Power LED | Green |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Minimum Bending Radius | 10 × cable diameter |
| Silicone Free | Yes |
