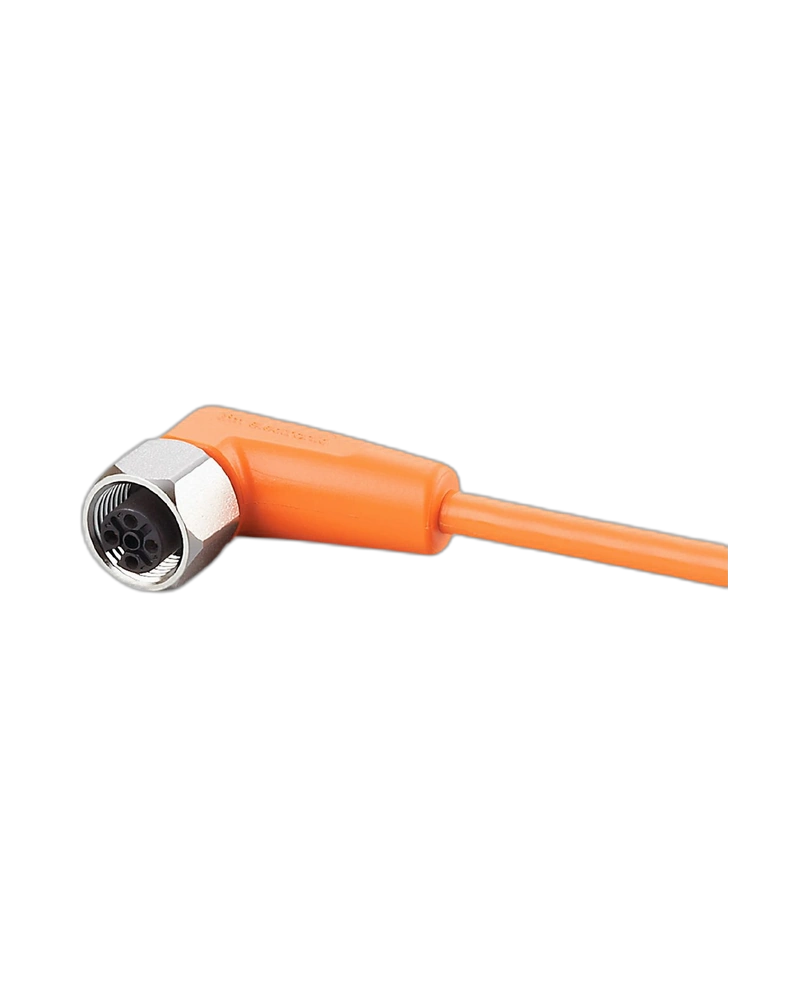

IFM EVT367 is a 25 m M12 3-pole female connection cable with angled socket, gold-plated contacts and orange PVC cable for hygienic and wet-area automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVT367 provides a long 25 m cable connection for industrial sensors and automation equipment installed in hygienic and wet environments.
Its angled M12 female connector allows improved cable routing around machinery while reducing installation constraints. The 3-pole A-coded connector provides reliable connectivity for compatible automation devices.
The cable features a flexible orange PVC sheath, gold-plated contacts and stainless-steel 316L locking hardware. EPDM sealing and IP65/IP67/IP68/IP69K protection support reliable operation in demanding environments. The cable is also suitable for drag-chain applications.
25 m Extended Length: Ideal for large machinery and production areas.
Angled M12 Socket: Improves installation flexibility.
3-Pole Design: Supports reliable sensor connections.
Gold-Plated Contacts: Helps maintain stable signal transmission.
316L Stainless Steel Nut: Supports hygienic industrial installations.
IP69K Protection: Suitable for washdown environments.
Mechanical End Stop: Helps protect the O-ring during installation.
Food and beverage machinery
Hygienic production
Packaging equipment
Wet-area automation
Industrial sensors
Process equipment
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT367 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 25 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
