IFM EVT366 is a 20 m M12 3-pole female connection cable with angled socket, gold-plated contacts, orange PVC cable and IP69K protection for hygienic industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

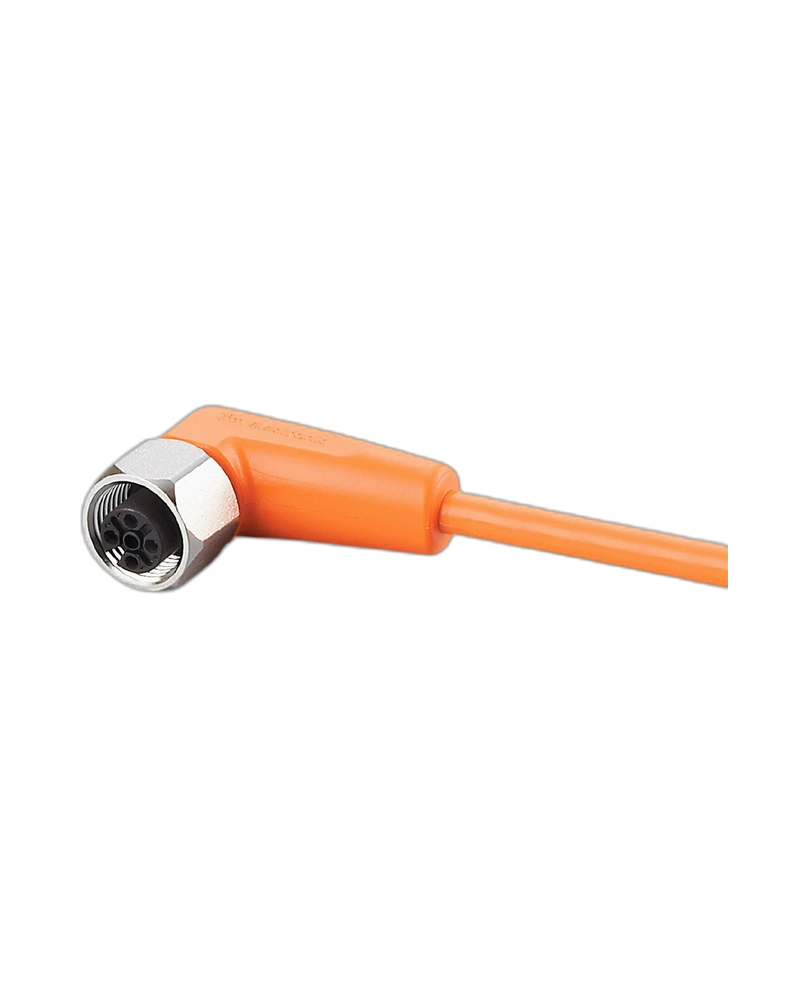

The IFM EVT366 is a 20 m M12 female connection cable designed for sensor connections in hygienic, wet and demanding industrial environments.
The angled M12 socket allows flexible cable routing around machinery and equipment. Its 3-pole A-coded connection provides dependable electrical connectivity, while gold-plated contacts support reliable signal transmission.
The cable uses an orange PVC sheath with three 0.34 mm² conductors. Its stainless-steel 316L coupling nut and EPDM sealing system provide durability and protection against moisture. The cable is suitable for drag-chain applications and offers IP65/IP67/IP68/IP69K protection.
20 m Cable Length: Suitable for larger machines and production systems.
Angled M12 Socket: Provides flexible cable routing.
3-Pole Connectivity: Suitable for compatible sensors.
Gold-Plated Contacts: Supports dependable electrical connection.
316L Stainless Steel Nut: Provides robust hygienic construction.
IP69K Protection: Supports demanding washdown applications.
Drag-Chain Suitable: Supports dynamic installations.
Food processing equipment
Hygienic automation
Packaging machinery
Wet-area sensors
Industrial process systems
Machine automation
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT366 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 20 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
