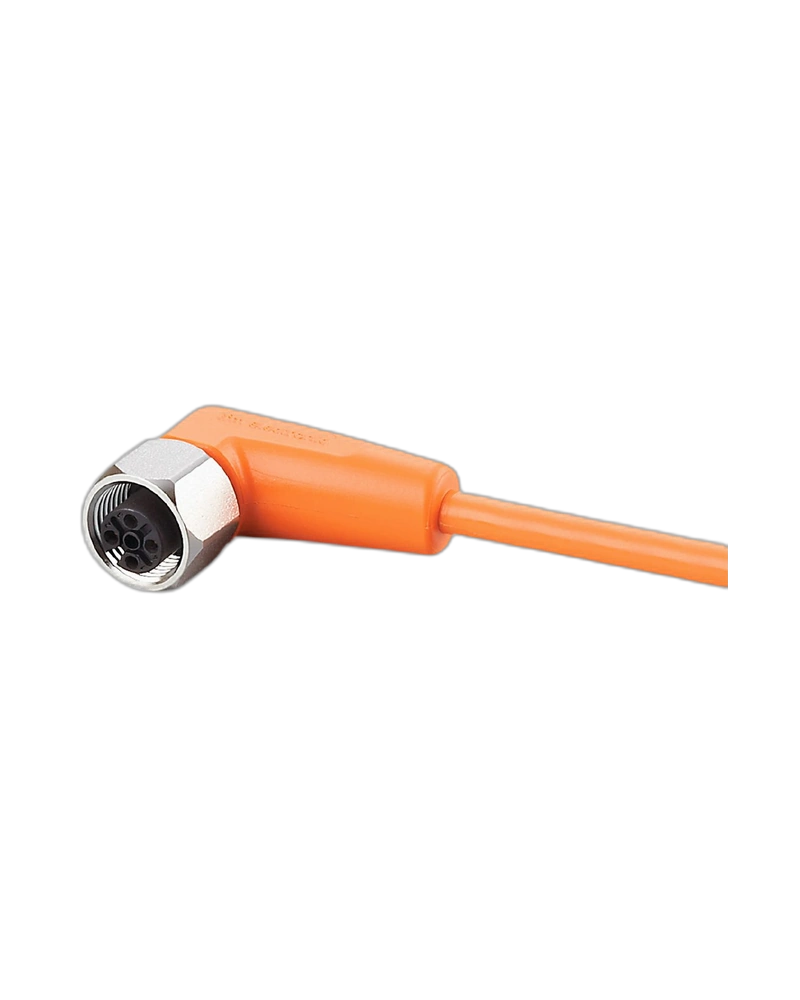

IFM EVT365 is a 10 m M12 3-pole female connection cable with angled socket, gold-plated contacts, orange PVC cable and high IP protection for hygienic applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVT365 is a 10 m M12 female connection cable designed for use in hygienic and wet areas of industrial and food-processing environments.
Its angled M12 socket helps route the cable efficiently where straight connector access is restricted. The 3-pole A-coded connection supports reliable sensor connectivity, while gold-plated contacts improve electrical performance.
The orange PVC cable is 10 m long and contains three 0.34 mm² conductors. A 316L stainless-steel coupling nut, EPDM seal and high IP65/IP67/IP68/IP69K protection provide dependable performance in demanding environments.
10 m Cable Length: Provides extended installation flexibility.
Angled M12 Socket: Helps improve cable routing.
3-Pole Connection: Suitable for compatible sensor applications.
Gold-Plated Contacts: Supports reliable signal transmission.
316L Stainless Steel Nut: Provides durable hygienic construction.
IP69K Protection: Suitable for demanding washdown environments.
Drag-Chain Suitable: Supports moving applications.
Food processing machinery
Hygienic automation
Packaging equipment
Wet-area sensors
Process machinery
Industrial automation
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT365 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 10 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
