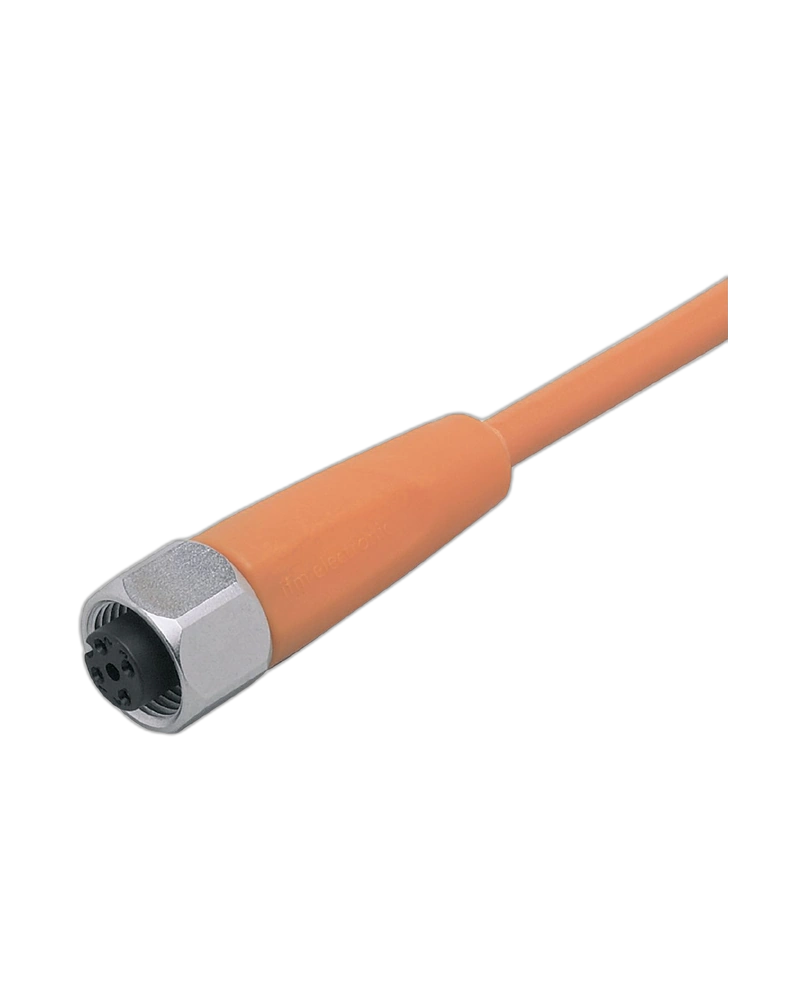

IFM EVT364 is a 25 m M12 3-pole female connection cable with straight socket, gold-plated contacts, orange PVC cable and IP69K protection for hygienic industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVT364 is a long-length M12 connection cable designed for reliable sensor and automation connections in hygienic and wet environments.
With a 25 m orange PVC cable and straight M12 female socket, the EVT364 is suitable for installations where automation devices are positioned at greater distances. The 3-pole configuration provides dependable electrical connectivity, while gold-plated contacts help maintain stable signal transmission.
The cable features a stainless-steel 316L coupling nut and EPDM sealing. Its IP65, IP67, IP68 and IP69K protection makes it suitable for demanding food-processing and washdown applications.
25 m Extended Cable: Suitable for large production systems.
3-Pole M12 Socket: Supports standard sensor connections.
Gold-Plated Contacts: Provides dependable connectivity.
316L Stainless-Steel Nut: Supports hygienic and durable installation.
IP69K Protection: Suitable for high-pressure washdown environments.
Wide Temperature Range: Supports demanding industrial conditions.
Food processing
Packaging machinery
Hygienic production
Wet-area automation
Industrial sensor connections
Process equipment
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT364 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Straight |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 25 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
