IFM EVT363 is a 20 m M12 3-pole female connection cable with straight socket, gold-plated contacts, PVC cable and IP69K protection for hygienic food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

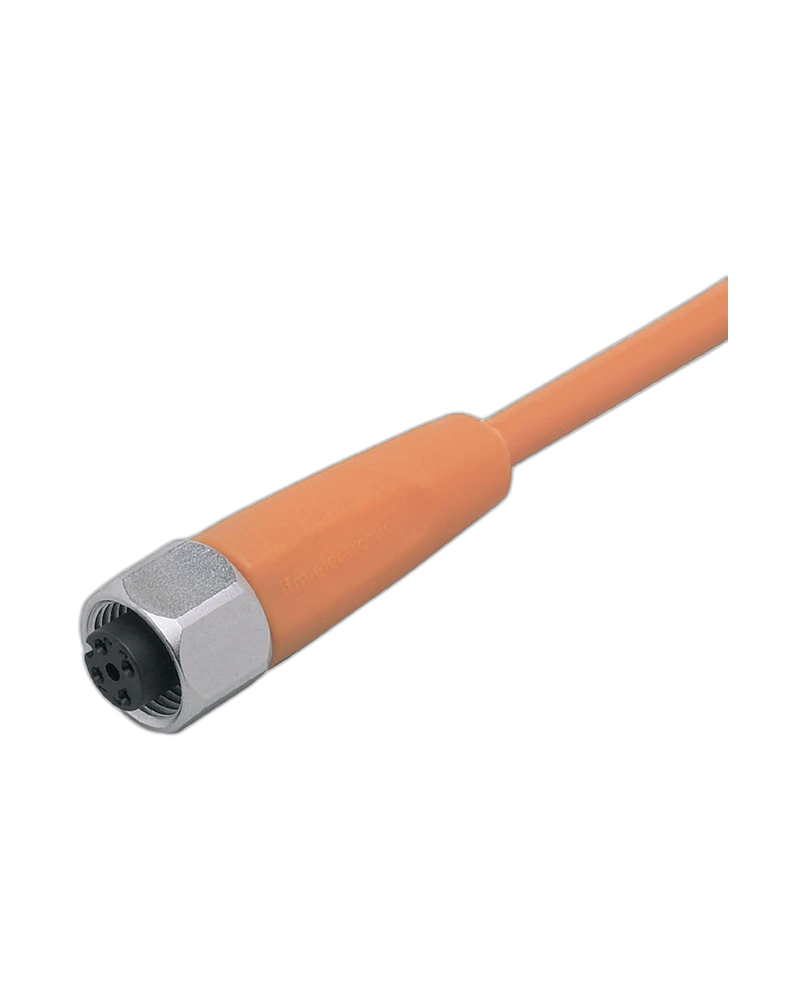

The IFM EVT363 is a 20 m M12 female connection cable developed for industrial automation applications in hygienic and wet environments, particularly within the food industry.
It features a straight M12 socket with A-coded 3-pole connectivity and gold-plated contacts. The orange PVC cable contains three 0.34 mm² conductors and is suitable for reliable connection of compatible sensors and automation devices.
The stainless-steel 316L coupling nut provides robust mechanical connection, while EPDM sealing and IP65/IP67/IP68/IP69K protection help the cable operate reliably in wet and demanding environments. The cable is also suitable for drag-chain applications.
20 m Cable Length: Suitable for large machine installations.
3-Pole M12 Socket: Provides reliable sensor connectivity.
Gold-Plated Contacts: Supports stable electrical performance.
Stainless-Steel Nut: Provides strong mechanical durability.
IP69K Protection: Suitable for washdown and wet environments.
Food-Industry Suitable: Designed for hygienic applications.
Drag-Chain Suitable: Supports dynamic installations.
Food processing machinery
Hygienic automation
Wet-area machinery
Packaging equipment
Process automation
Industrial sensors
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT363 |
| Product Type | Connecting cable with socket |
| Connector | M12 female |
| Connector Design | Straight |
| Coding | A-coded |
| Number of Contacts | 3 |
| Cable Length | 20 m |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | PVC |
| Sealing Material | EPDM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Ambient Temperature | -25 to +100 °C |
| Moving Temperature | 5 to +100 °C |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
