IFM EVT165 is a 10 m M8 connection cable for hygienic and wet food-industry environments. It combines flexible PVC construction, gold-plated contacts, stainless-steel locking and high IP protection for demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Connection
EVT165 provides a 10 m connection length, making it suitable for larger machines and installations requiring extended cable routing.
M8 Connection Technology

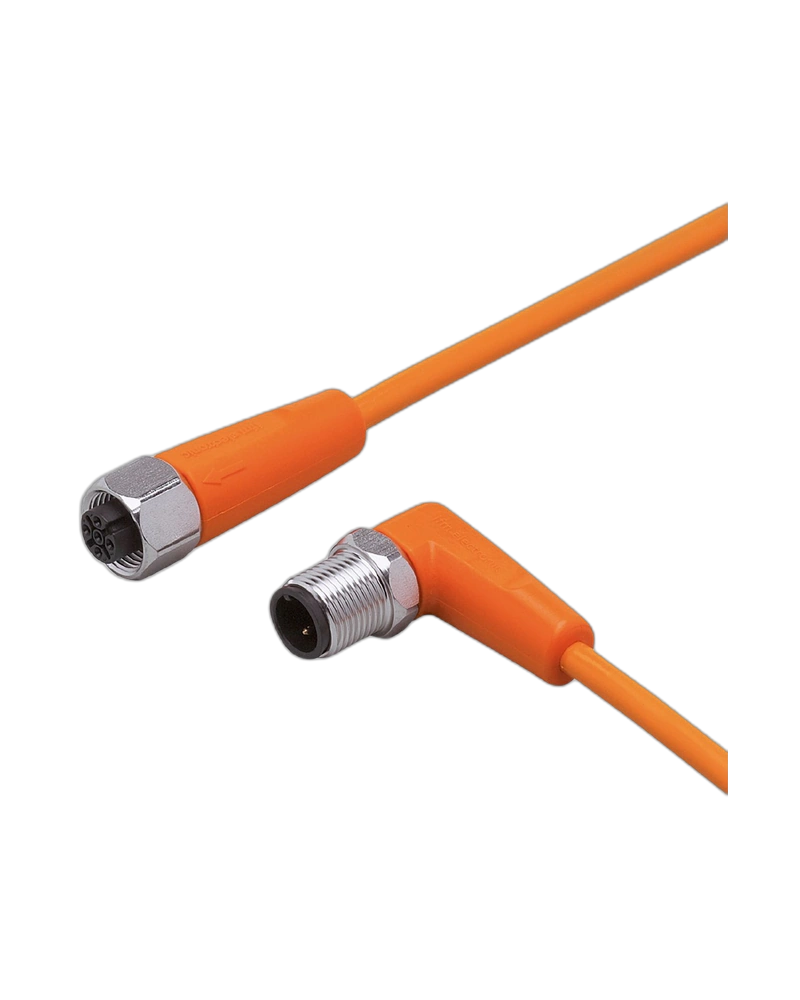

The cable incorporates an angled M8 plug and straight M8 socket with gold-plated contacts. Stainless-steel locking components provide secure mechanical connection.
Hygienic Applications
The cable is designed specifically for hygienic and wet areas in food-industry applications.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection supports reliable operation in demanding environments. The cable operates from -25°C to 80°C.
Motion and Flexibility
EVT165 is suitable for drag-chain applications and can withstand repeated bending and torsional movement.
10 m cable length for extended installations.
Reliable M8 connection technology.
High protection against water and dust.
Gold-plated contacts.
Stainless-steel locking components.
Suitable for moving applications.
Food-processing machinery
Packaging lines
Industrial automation
Sensor installations
Hygienic production systems
Machine-building applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT165 |
| Product Type | Connection Cable |
| Order Code | VDOGF030VAS0010E03STAF030VAS |
| Cable Length | 10 m |
| Connector | M8 |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Conductor | 3 x 0.34 mm² |
| Contacts | Gold-plated |
| Locking Material | Stainless steel 316L |
| Sealing Material | FKM |
| Current Rating | 3 A |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25°C to 80°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
