IFM EVT146 is a 5 m M8 plug-to-socket connection cable with 3 contacts, gold-plated connectors and IP69K protection for hygienic industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVT146 is a 5 m M8 patchcord designed for reliable connection between industrial sensors and automation devices. Its extended cable length provides greater installation flexibility for machinery and production systems.

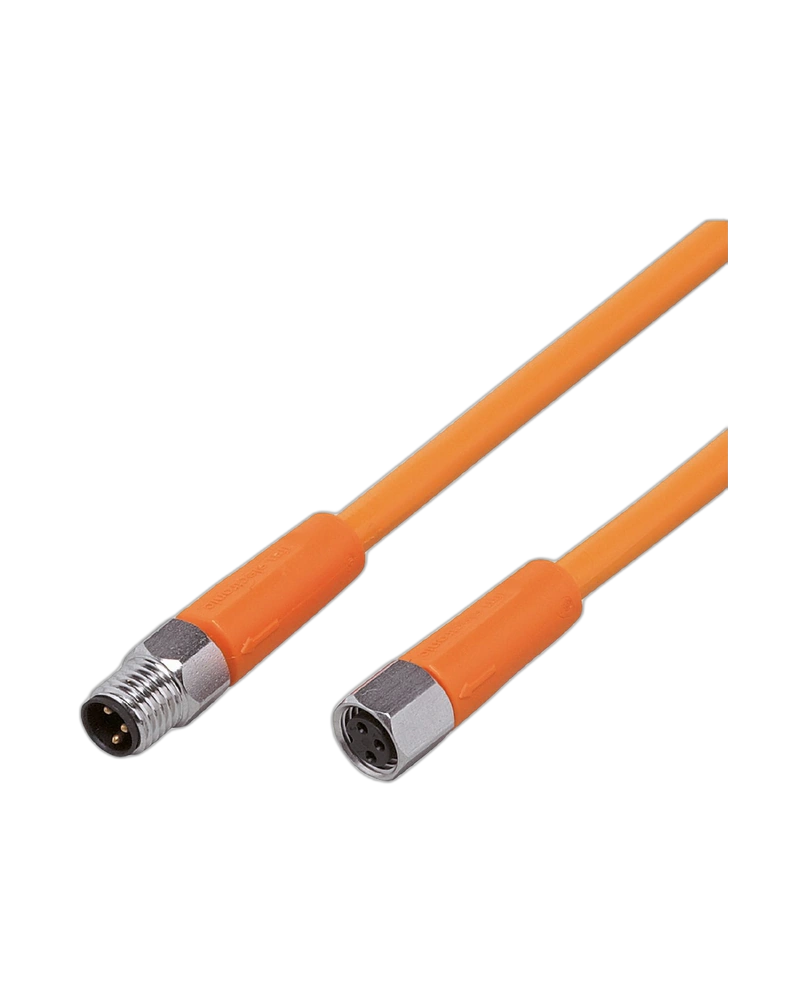

The cable features straight M8 plug and socket connectors with 3 contacts. Gold-plated contacts support reliable electrical connectivity, while the stainless-steel 316L locking components and EPDM sealing provide robust mechanical and environmental protection.
The EVT146 is designed for hygienic and wet areas in the food industry. It supports IP65/IP67/IP68/IP69K protection and dynamic applications with more than one million bending cycles.
5 m Extended Cable Length: Provides flexible connectivity for larger machines.
M8 Plug-to-Socket Design: Enables direct connection between compatible automation components.
3-Pole Configuration: Suitable for common sensor and automation applications.
Gold-Plated Contacts: Supports reliable signal transmission.
IP69K Protection: Suitable for demanding wet and washdown environments.
316L Stainless Steel Locking: Provides durable mechanical connection.
More Than 1 Million Bending Cycles: Suitable for repeated cable movement.
Drag-Chain Suitable: Supports dynamic machine installations.
Industrial automation
Food processing machinery
Packaging equipment
M8 sensor connections
Hygienic production
Process automation
Machine automation
Dynamic equipment
| Specification | Details |
|---|---|
| Product Model | EVT146 |
| Part Number | VDOGF030VAS0005E03STGF030VAS |
| Product Type | Connection cable / patchcord |
| Cable Length | 5 m |
| Connector Configuration | M8 plug / M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 3 |
| Electrical Design | AC/DC |
| Operating Voltage | 50 V AC / 60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Contact Material | Gold-plated |
| Locking Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Up to 3.3 m/s |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Manufacturer | IFM Electronic |
