IFM EVT143 is a 0.6 m M8 plug-to-socket connection cable with 3 contacts, gold-plated connectors and IP69K protection for hygienic industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

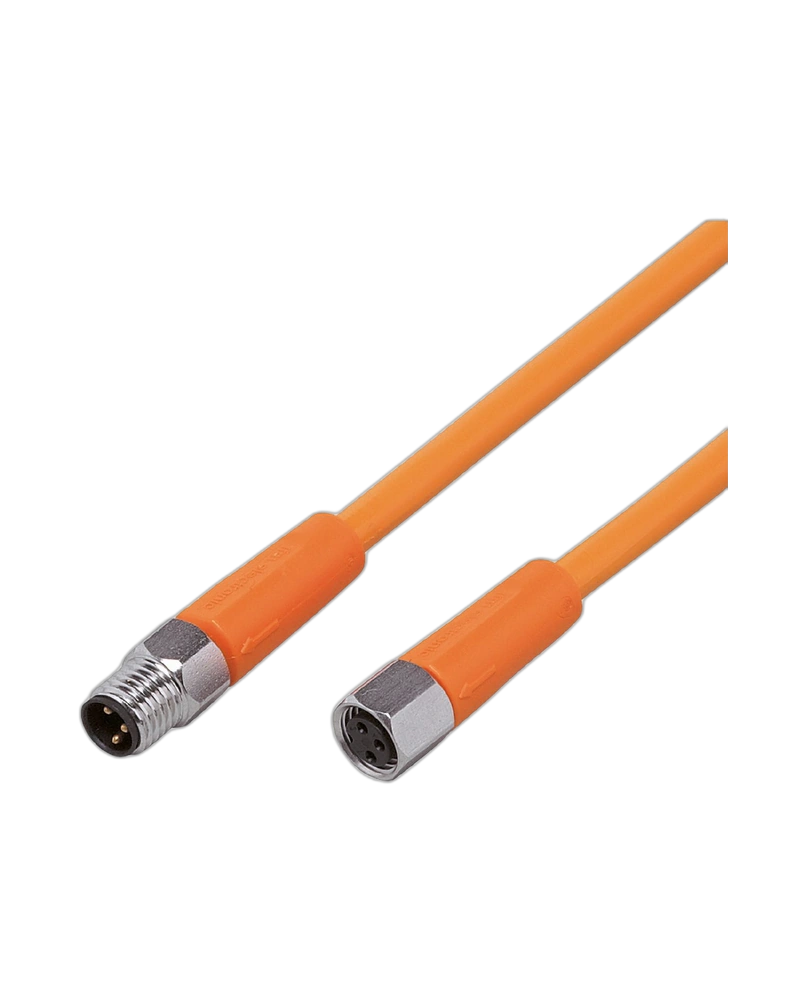

The IFM EVT143 is a compact M8 patchcord designed for reliable connections between industrial sensors and automation components. Its 0.6 m cable length is suitable for short-distance machine connections where additional cable flexibility is required.
The cable uses straight M8 plug and socket connectors with 3 contacts and an AC/DC electrical design. Gold-plated contacts support dependable signal transmission, while the stainless-steel coupling components and EPDM sealing provide reliable mechanical and environmental protection.
The EVT143 is suitable for hygienic and wet food-industry areas and supports dynamic installations with drag-chain compatibility.
0.6 m Cable Length: Provides convenient short-distance connectivity.
M8 Plug-to-Socket Design: Enables direct connection between compatible devices.
3-Pole Configuration: Suitable for common industrial sensor connections.
Gold-Plated Contacts: Supports reliable electrical conductivity.
IP69K Protection: Suitable for wet and washdown environments.
Dynamic Application Support: Suitable for drag-chain installations.
Wide Temperature Range: Supports demanding industrial conditions.
Industrial sensors
Machine automation
Food processing
Packaging machinery
Hygienic production
Process automation
Sensor interconnection
Dynamic machine equipment
| Specification | Details |
|---|---|
| Product Model | EVT143 |
| Part Number | VDOGF030VAS00,6E03STGF030VAS |
| Product Type | Patchcord / connection cable |
| Cable Length | 0.6 m |
| Connector Configuration | M8 plug / M8 socket |
| Connector Design | Straight / Straight |
| Number of Contacts | 3 |
| Coding | A-coded |
| Electrical Design | AC/DC |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Manufacturer | IFM Electronic |
