IFM EVT136 is a 10 m M8 4-pole female connection cable with straight socket, gold-plated contacts and IP69K protection for hygienic and wet industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

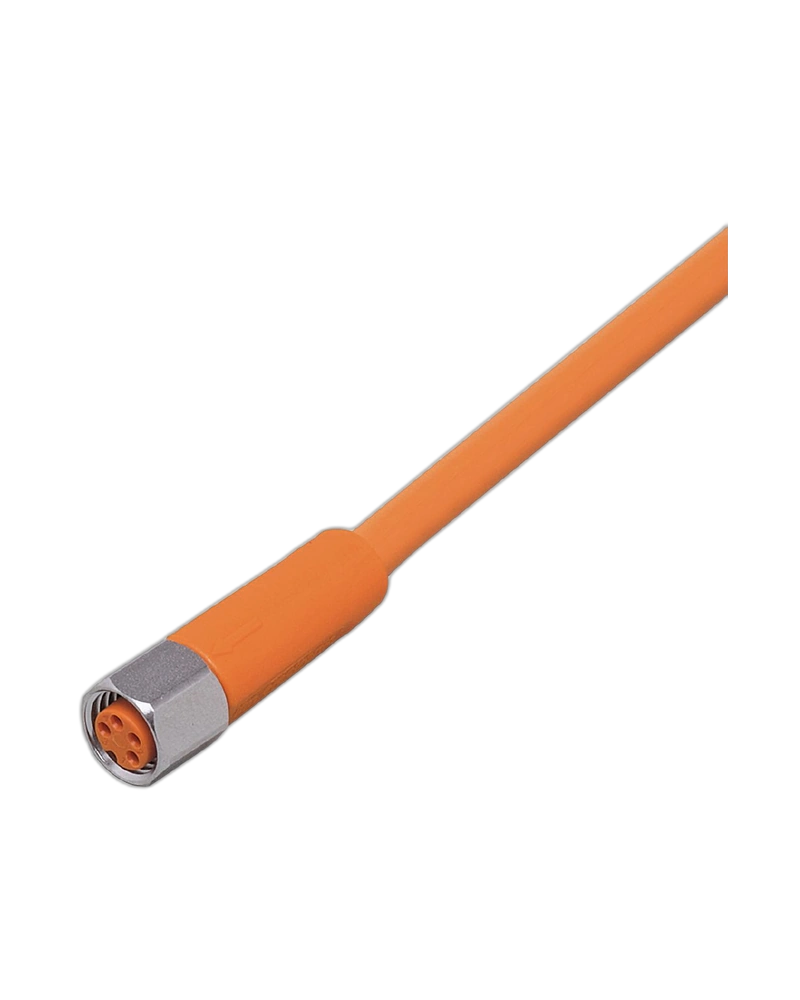

The IFM EVT136 is a long-length M8 female connection cable designed for reliable industrial sensor and automation connections. Its 10 m cable length provides extended reach for large machines and production systems.
The cable features a 4-pole straight M8 socket and an orange PVC cable with four 0.34 mm² conductors. Gold-plated contacts support reliable electrical transmission, while the stainless-steel 316L coupling nut and EPDM sealing provide mechanical and environmental protection.
With IP65, IP67, IP68 and IP69K protection, the EVT136 is designed for hygienic and wet areas in the food industry. It is also suitable for drag-chain applications and more than one million bending cycles.
10 m Extended Length: Suitable for large machines and production installations.
4-Pole M8 Connection: Provides flexible multi-signal connectivity.
Straight M8 Socket: Provides a secure connection to compatible sensors.
Gold-Plated Contacts: Supports dependable electrical performance.
IP69K Protection: Suitable for demanding washdown environments.
316L Stainless Steel Nut: Provides strong mechanical durability.
Drag-Chain Suitable: Supports dynamic machinery.
More Than 1 Million Bending Cycles: Suitable for repeated cable movement.
Food processing machinery
Hygienic automation
M8 sensor systems
Packaging equipment
Process automation
Production machinery
Wet-area applications
Dynamic industrial equipment
| Specification | Details |
|---|---|
| Product Model | EVT136 |
| Part Number | ADOGF040VAS0010E04 |
| Product Type | Connecting cable with socket |
| Cable Length | 10 m |
| Connector | M8 female |
| Connector Design | Straight |
| Number of Contacts | 4 |
| Coding | A-coded |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Up to 3.3 m/s |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | 5 to +80 °C |
| Manufacturer | IFM Electronic |
