IFM EVT135 is a 5 m M8 4-pole female connection cable with straight socket, gold-plated contacts and IP69K protection for hygienic industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

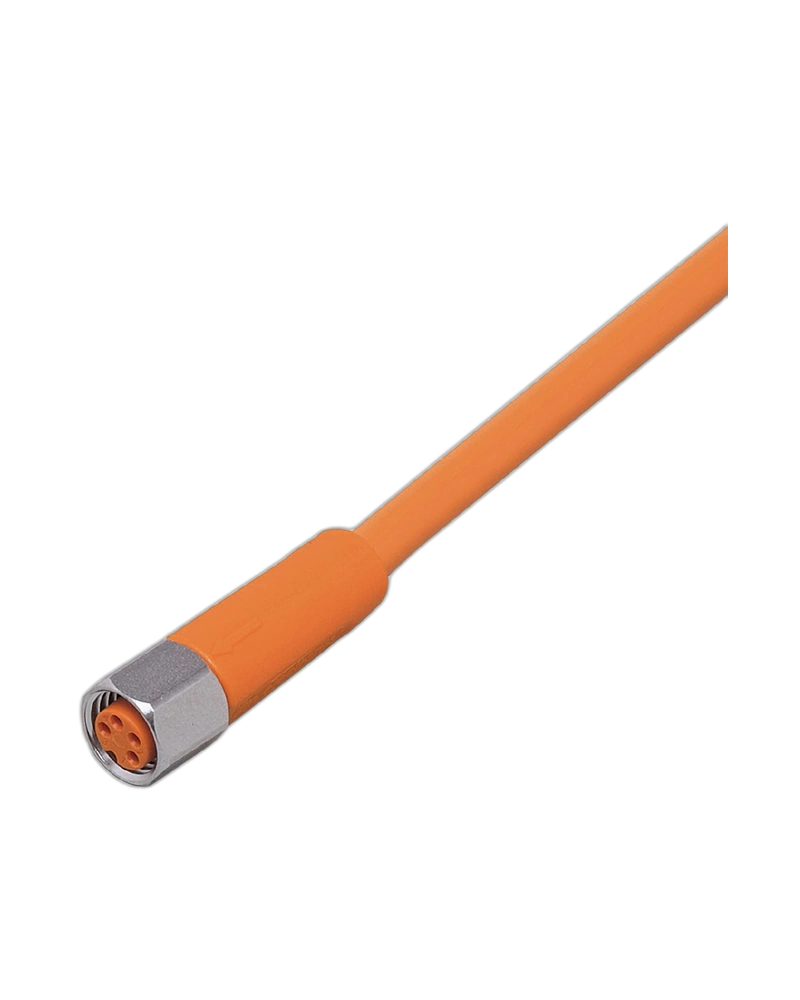

The IFM EVT135 is a 5 m M8 female connection cable designed for reliable connections between industrial sensors and automation equipment.
Its 4-pole M8 socket provides multiple signal connections while the orange PVC cable offers flexible installation. Gold-plated contacts support stable electrical performance, while the stainless-steel 316L coupling nut and EPDM sealing provide robust mechanical and environmental protection.
The cable is designed for hygienic and wet food-industry applications. High IP65/IP67/IP68/IP69K protection and drag-chain suitability make it suitable for demanding automation installations.
5 m Cable Length: Provides additional installation flexibility.
4-Pole M8 Connection: Supports multiple electrical signals.
Gold-Plated Contacts: Helps maintain reliable electrical connectivity.
IP69K Protection: Suitable for wet and washdown environments.
316L Stainless Steel Locking: Provides robust mechanical connection.
Drag-Chain Suitable: Supports repeated cable movement.
Wide Operating Temperature: Suitable for demanding industrial conditions.
Industrial automation
Food processing machinery
Hygienic production
Packaging systems
M8 sensors
Process equipment
Wet-area machinery
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT135 |
| Part Number | ADOGF040VAS0005E04 |
| Product Type | Connecting cable with socket |
| Cable Length | 5 m |
| Connector | M8 female |
| Connector Design | Straight |
| Number of Contacts | 4 |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | 5 to +80 °C |
| Manufacturer | IFM Electronic |
