IFM EVT134 is a 2 m M8 4-pole female connection cable with straight socket, gold-plated contacts and IP69K protection for hygienic and wet food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

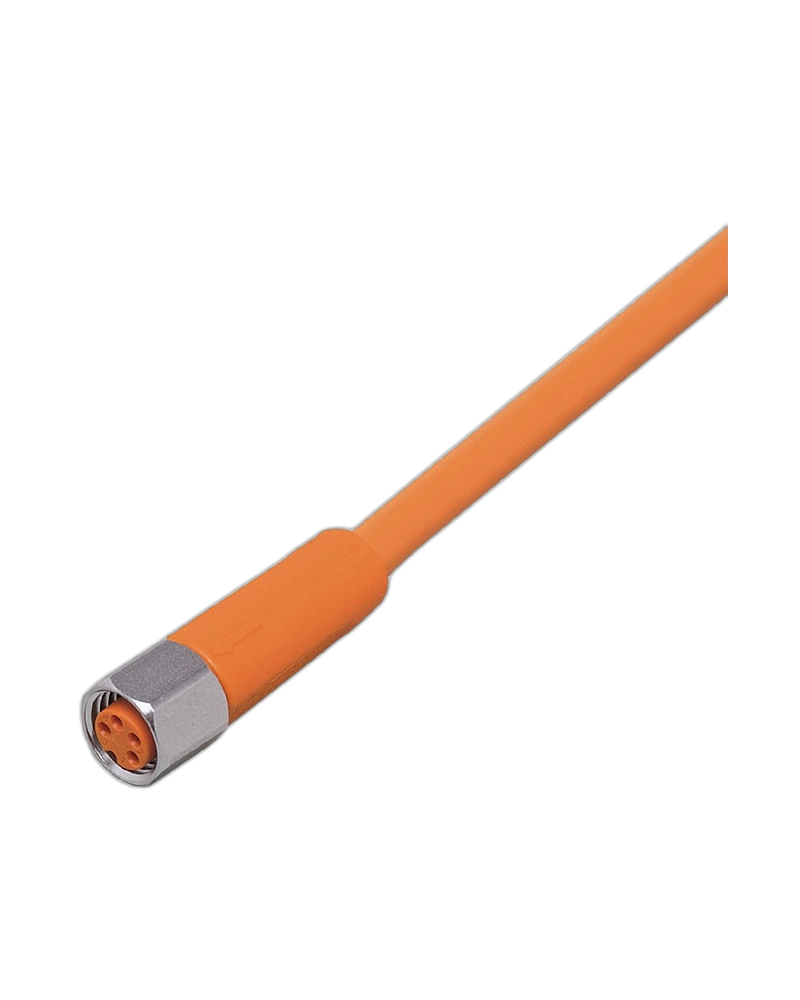

The IFM EVT134 is a 2 m female connection cable designed for 4-pole M8 sensor and automation connections. Its straight M8 socket provides secure and compact connection to compatible field devices.
The cable uses an orange PVC construction with four 0.34 mm² conductors. Gold-plated contacts support reliable electrical connectivity, while stainless-steel 316L locking components provide mechanical durability.
The EVT134 is designed for hygienic and wet areas in the food industry and offers IP65/IP67/IP68/IP69K protection. It is suitable for drag-chain applications and provides more than one million bending cycles.
2 m Cable Length: Suitable for compact and medium-sized machine installations.
4-Pole M8 Socket: Provides multiple electrical connections.
Gold-Plated Contacts: Supports reliable signal transmission.
IP69K Protection: Suitable for washdown and wet environments.
316L Stainless Steel Nut: Provides strong mechanical durability.
Drag-Chain Suitable: Supports dynamic machine applications.
Silicone-Free Construction: Suitable for hygienic applications.
Food processing machinery
M8 sensor connections
Hygienic automation
Packaging equipment
Process machinery
Industrial sensors
Wet-area installations
Production lines
| Specification | Details |
|---|---|
| Product Model | EVT134 |
| Part Number | ADOGF040VAS0002E04 |
| Product Type | Connecting cable with socket |
| Cable Length | 2 m |
| Connector | M8 female |
| Connector Design | Straight |
| Number of Contacts | 4 |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <50 V AC / <60 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | 5 to +80 °C |
| Manufacturer | IFM Electronic |
