IFM EVT133 is a 25 m angled M8 3-pole DC PNP female connection cable with LED indication, gold-plated contacts and IP69K protection for hygienic food-industry applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

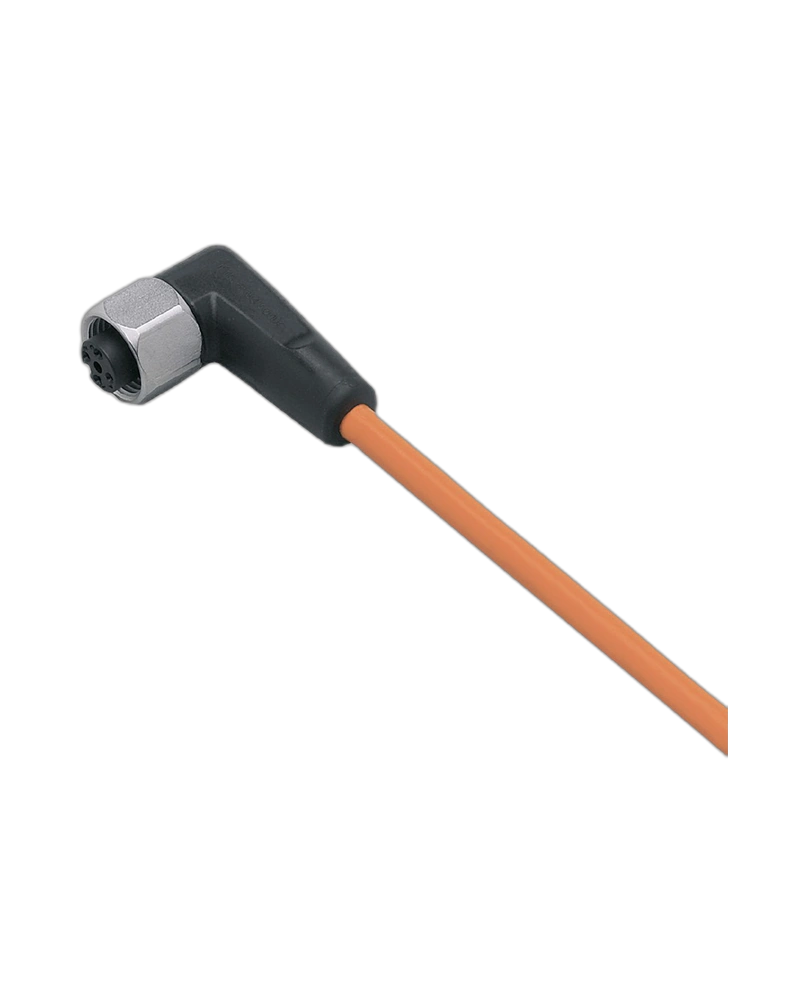

The IFM EVT133 provides a long 25 m connection for M8-compatible sensors in industrial automation applications. Its angled female M8 socket helps provide flexible routing around machinery.
The cable uses a 3-pole DC PNP configuration and operates from 10–36 V DC with a 3 A current rating. Yellow output and green power LEDs provide visible status indication.
The cable is suitable for hygienic and wet areas in the food industry. It features gold-plated contacts, stainless-steel 316L locking hardware and EPDM sealing, with IP65/IP67/IP68/IP69K protection. The cable is also suitable for drag-chain applications.
25 m Extended Length: Ideal for large machines and distributed sensor installations.
M8 3-Pole Connection: Provides compact connectivity for compatible sensors.
DC PNP Operation: Supports compatible PNP sensor applications.
LED Indication: Provides clear power and switching status.
Gold-Plated Contacts: Supports dependable signal transmission.
IP69K Protection: Suitable for high-pressure cleaning and wet environments.
316L Stainless Steel Nut: Provides durable mechanical connection.
Drag-Chain Suitable: Supports repeated movement.
Food processing
Hygienic production
M8 sensor systems
Packaging machinery
Industrial automation
Process control
Wet-area machinery
Dynamic machine installations
| Specification | Details |
|---|---|
| Product Model | EVT133 |
| Part Number | ADOAF032VAS0025E03 |
| Product Type | Female connection cable |
| Cable Length | 25 m |
| Connector | M8 female |
| Connector Design | Angled |
| Number of Contacts | 3 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Output LED | Yellow |
| Power LED | Green |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Minimum Bending Radius | 10 × cable diameter |
| Manufacturer | IFM Electronic |
