IFM EVT132 is a 10 m angled M8 3-pole DC PNP female connection cable with LED indication, gold-plated contacts and IP69K protection for hygienic automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

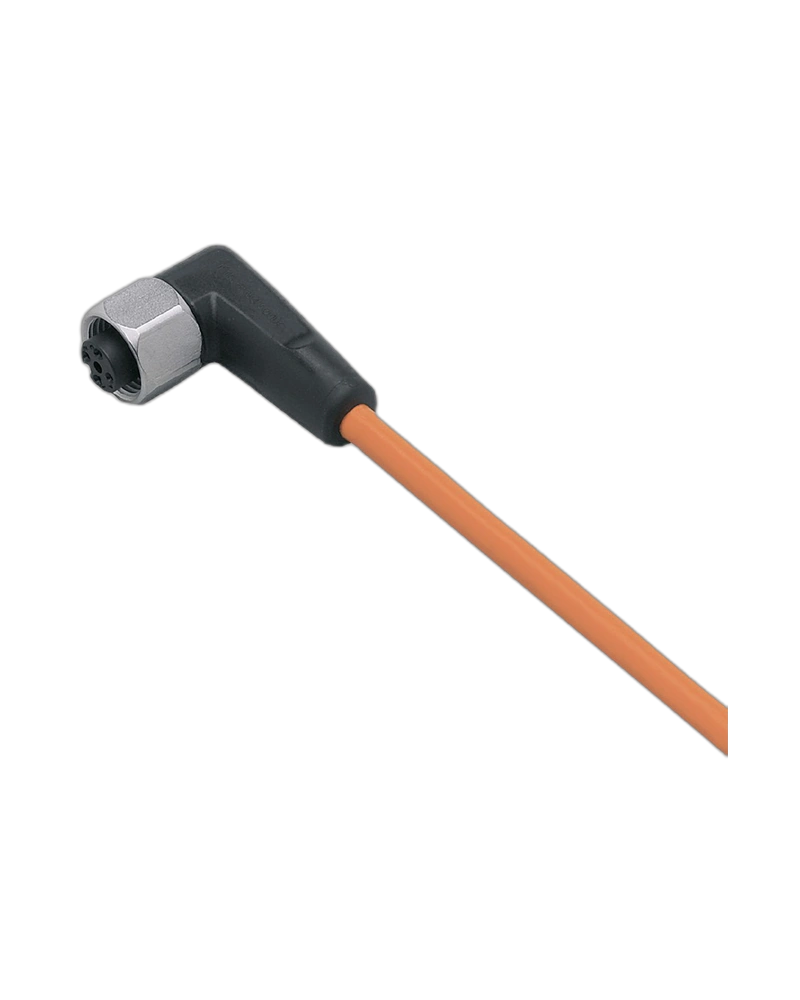

The IFM EVT132 is a high-performance female connection cable designed for M8 sensors in industrial automation applications. It features a 10 m orange PVC cable with an angled 3-pole M8 socket.
The cable uses a DC PNP electrical design with 10–36 V DC operating voltage and supports a current rating of 3 A. Yellow output-status and green power LEDs provide clear visual indication of sensor operation.
The cable is designed for hygienic and wet areas in the food industry. Gold-plated contacts, stainless-steel 316L locking hardware and EPDM sealing support dependable performance. Its IP65/IP67/IP68/IP69K protection makes it suitable for demanding washdown environments.
10 m Cable Length: Provides extended connection distance for M8 sensors.
DC PNP Design: Suitable for compatible PNP sensor systems.
10–36 V DC Operation: Supports common industrial sensor supply voltages.
LED Status Indication: Provides clear output and power status information.
Gold-Plated Contacts: Supports reliable electrical transmission.
IP69K Protection: Suitable for demanding hygienic and washdown applications.
316L Stainless Steel Nut: Provides robust mechanical durability.
Drag-Chain Suitable: Supports dynamic industrial installations.
M8 PNP sensors
Food processing machinery
Hygienic automation
Packaging systems
Industrial sensor networks
Wet-area equipment
Process automation
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVT132 |
| Part Number | ADOAF032VAS0010E03 |
| Product Type | Female connection cable |
| Cable Length | 10 m |
| Connector | M8 female |
| Connector Design | Angled |
| Number of Contacts | 3 |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 3 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 3 × 0.34 mm² |
| Contact Material | Gold-plated |
| Nut Material | Stainless steel 316L |
| Sealing Material | EPDM |
| Output LED | Yellow |
| Power LED | Green |
| Drag Chain Suitability | Yes |
| Bending Cycles | >1 million |
| Minimum Bending Radius | 10 × cable diameter |
| Manufacturer | IFM Electronic |
