IFM EVT057 is a 10 m M12 connection cable designed for extended DC PNP connections in hygienic and wet industrial environments. It features gold-plated contacts, LED status indication, silicone-free construction and high IP protection for reliable operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

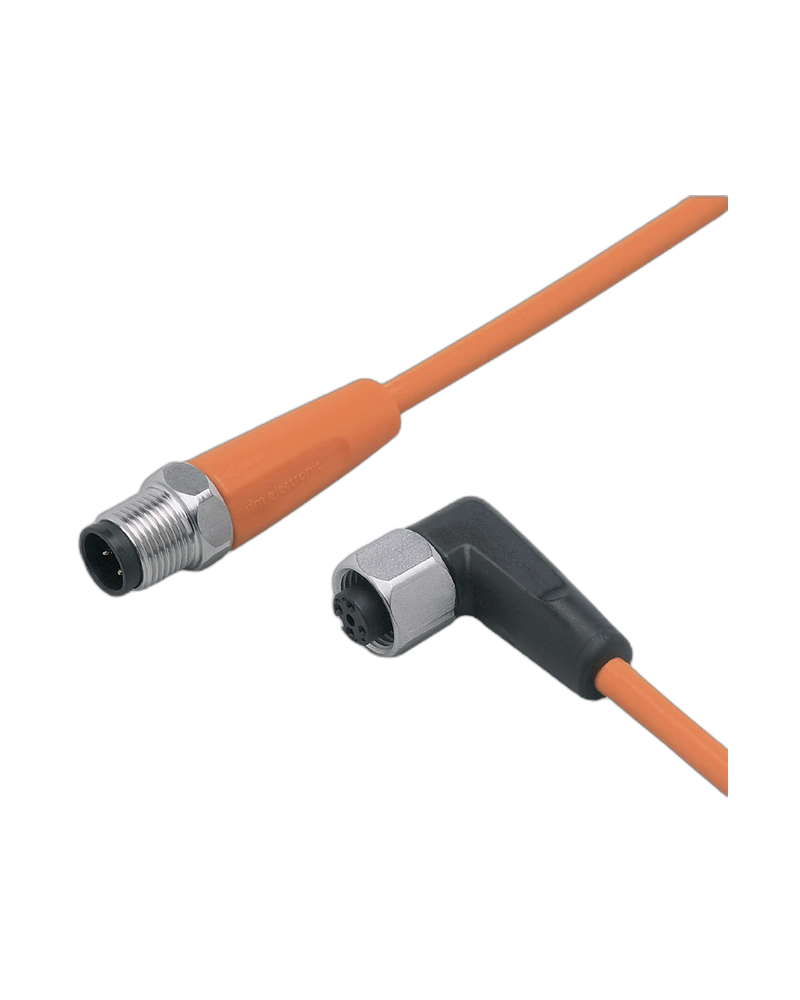

M12 Connection
EVT057 features an M12 plug and socket connection for secure connectivity between compatible sensors, field devices and automation components.
10 m Cable Length
The 10 m orange PVC cable provides extended reach and flexible routing for industrial installations where devices are positioned farther apart.
DC PNP Electrical Design
The cable supports 10–36 V DC operation with a current rating of 4 A for compatible DC PNP applications.
LED Status Indication
Integrated LED indicators provide visual status information during operation, helping users monitor the connection and switching condition.
Hygienic and Durable Construction
The silicone-free construction, gold-plated contacts, EPDM sealing and stainless-steel locking components support reliable operation in hygienic and demanding environments.
High IP Protection
IP65, IP67, IP68 and IP69K protection provides resistance against water, moisture and cleaning conditions, making the cable suitable for washdown applications.
EVT057 offers an extended 10 m connection length, reliable M12 connectivity, DC PNP electrical design and LED status indication. Its gold-plated contacts, silicone-free construction and high IP protection provide dependable performance in hygienic and demanding industrial environments.
EVT057 is suitable for food-processing machinery, packaging equipment, industrial automation systems, sensor installations, hygienic production lines and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT057 |
| Product Type | Connection Cable |
| Order Code | VDOAH043VAS0010E04STGH040VAS |
| Cable Length | 10 m |
| Connector | M12 Plug / M12 Socket |
| Design | Straight / Angled |
| Coding | A |
| Electrical Design | DC PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Operating Voltage | 10–36 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
