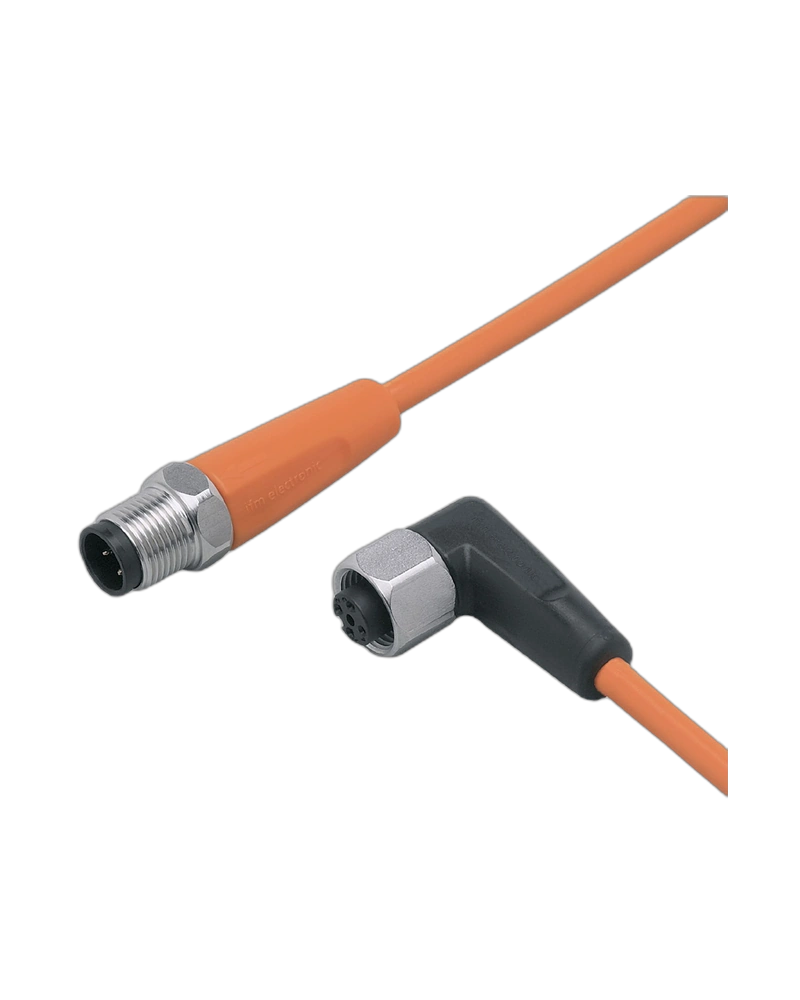

IFM EVT056 is a 5 m M12 connection cable designed for extended DC PNP connections in industrial automation and hygienic applications. It offers reliable signal transmission, gold-plated contacts, silicone-free construction and high IP protection for demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Connection
EVT056 features an M12 plug and socket connection that provides reliable connectivity between compatible sensors and automation components.
5 m Cable Length
The 5 m orange PVC cable provides extended routing flexibility for industrial machinery where field devices are positioned away from control equipment.
DC PNP Electrical Design
The cable supports 10–36 V DC operation with a 4 A current rating for suitable DC PNP applications.
Hygienic Construction
The silicone-free construction supports hygienic and wet environments, including food-processing and production machinery.
High Protection and Durability
Gold-plated contacts, EPDM sealing and stainless-steel locking components help maintain reliable operation. High IP protection supports resistance to water and washdown conditions.
EVT056 provides a 5 m connection length, reliable M12 connectivity and DC PNP electrical design. Its gold-plated contacts, silicone-free construction and high IP protection make it suitable for demanding industrial and hygienic applications.
EVT056 is suitable for food-processing machinery, packaging systems, industrial automation equipment, sensor installations, hygienic machinery and wet or washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT056 |
| Product Type | Connection Cable |
| Order Code | VDOAH043VAS0005E04STGH040VAS |
| Cable Length | 5 m |
| Connector | M12 Plug / M12 Socket |
| Design | Straight / Angled |
| Electrical Design | DC PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Operating Voltage | 10–36 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
