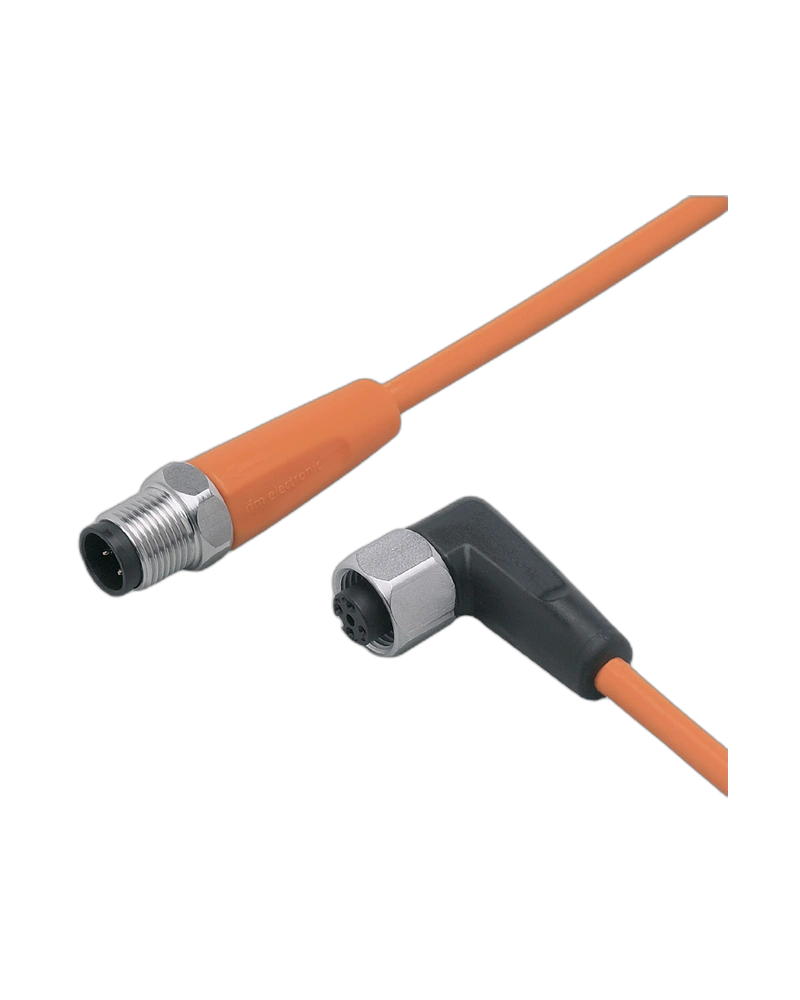

IFM EVT052 is a compact 0.3 m M12 connection cable designed for reliable sensor and automation connections. It features a four-core PVC cable, gold-plated contacts, silicone-free construction and high IP protection for hygienic and wet environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Connection
EVT052 features an M12 connection designed to provide reliable connectivity between compatible industrial sensors and automation equipment.
0.3 m Cable Length
The short 0.3 m cable length is ideal for compact installations where minimal cable routing is required.
Four-Core Electrical Design
The four 0.34 mm² conductors provide reliable signal transmission for compatible industrial automation applications.
Hygienic Construction
Its silicone-free construction supports hygienic and wet environments, especially in food-processing and production machinery.
High Protection
Gold-plated contacts, EPDM sealing and stainless-steel locking components help provide dependable operation. High IP protection supports resistance to water and cleaning conditions.
EVT052 provides a compact 0.3 m connection solution with M12 connectivity, four-core construction, gold-plated contacts and silicone-free design. Its high IP protection makes it suitable for hygienic and wet industrial applications.
The cable can be used in food-processing machinery, packaging systems, industrial automation equipment, sensor installations, hygienic machinery and washdown environments.
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT052 |
| Product Type | Connection Cable |
| Order Code | VDOAH043VAS00,3E04STGH040VAS |
| Cable Length | 0.3 m |
| Connector | M12 Plug / M12 Socket |
| Design | Straight / Angled |
| Electrical Design | DC PNP |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Operating Voltage | 10–36 V DC |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
