IFM EVT033 is a 10 m M12 connection cable with reliable industrial connectivity for hygienic and wet food-industry applications. It features gold-plated contacts, stainless-steel locking, EPDM sealing and drag-chain suitability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
10 m Cable Length
EVT033 provides extended cable reach for larger machinery and installations where longer sensor connections are required.

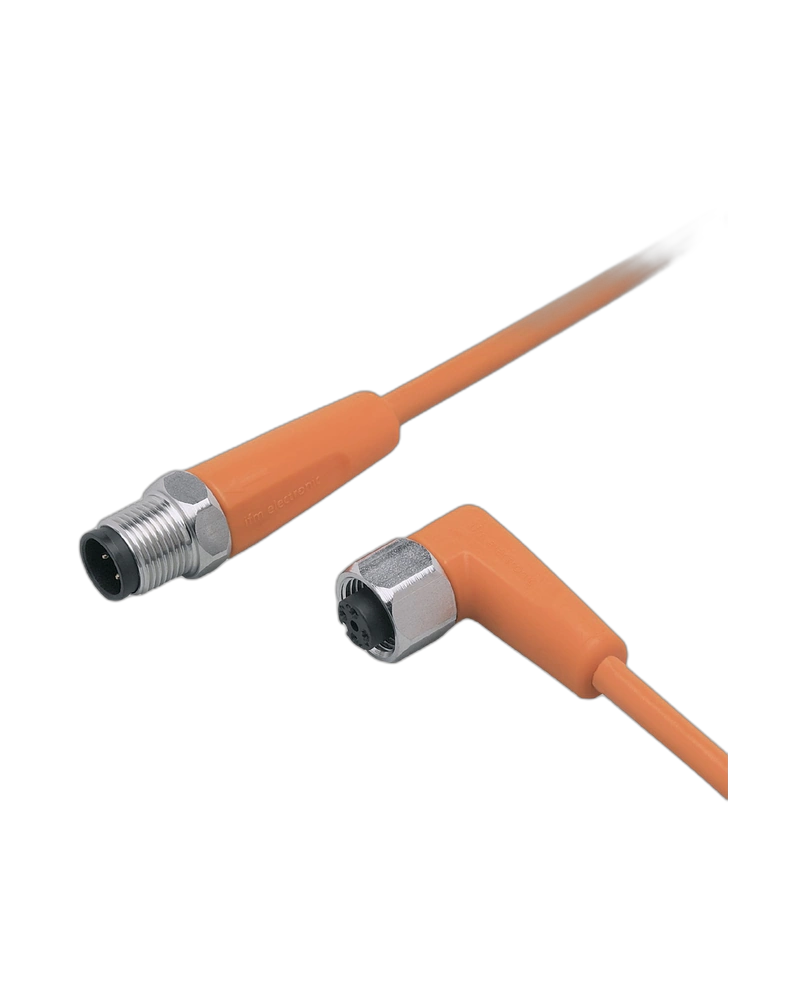

M12 Connector Configuration
The cable uses one straight M12 connector and one angled M12 socket, both A-coded, providing practical routing flexibility.
Reliable Electrical Connection
Three 0.34 mm² conductors with gold-plated contacts provide reliable electrical connectivity.
Hygienic Design
The cable is intended for hygienic and wet areas in the food industry and is silicone-free.
Mechanical Protection
The stainless-steel locking components and EPDM sealing provide reliable mechanical and environmental protection. IFM specifies drag-chain suitability, with a minimum bending radius of 10 times the cable diameter and more than one million bending cycles for this product family.
10 m extended cable length
Straight and angled M12 connection
Gold-plated contacts
EPDM sealing
Stainless-steel locking
Silicone-free construction
Suitable for drag-chain applications
Food processing machinery
Packaging systems
Hygienic production equipment
Industrial automation
Sensor connections
Dynamic machine installations
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT033 |
| Product Type | Connection Cable / Jumper Cable |
| Order Code | VDOAH030VAS0010E03STGH030VAS |
| Cable Length | 10 m |
| Connector | M12 |
| Male Connector | Straight |
| Female Socket | Angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Conductors | 3 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
