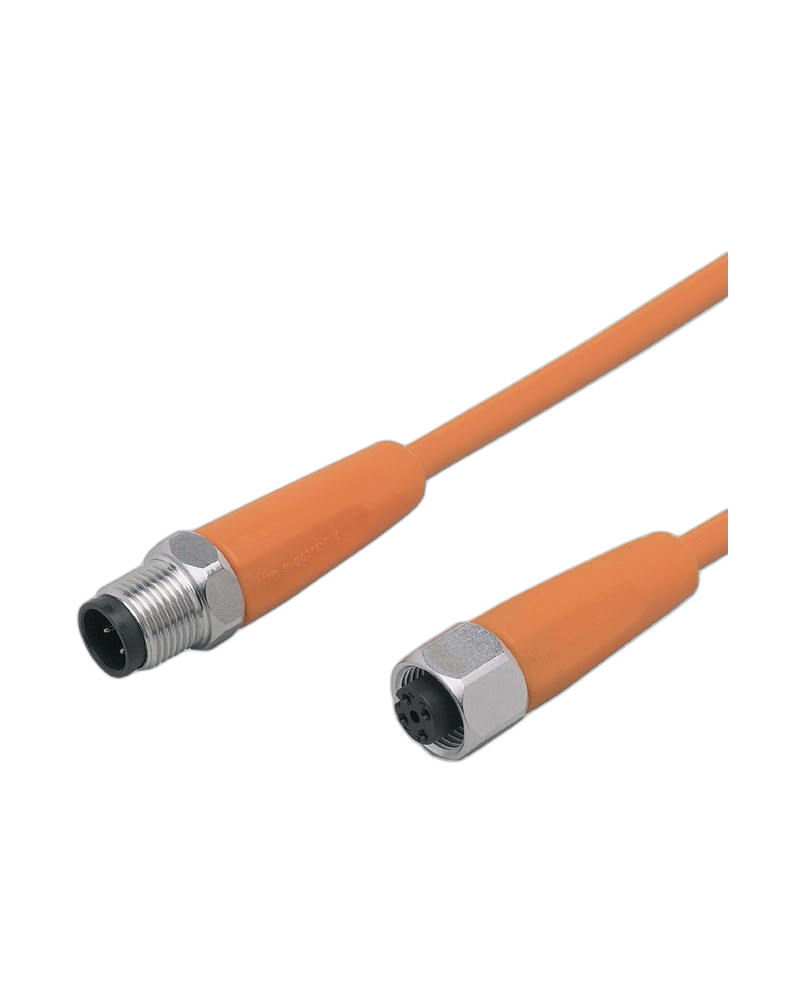

IFM EVT027 is a 10 m M12 connection cable with straight connectors for hygienic and wet food-industry applications. It combines reliable three-core connectivity, gold-plated contacts, stainless-steel locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance M12 Connection
EVT027 is designed for reliable connections between industrial automation components where an extended cable length is required.
10 m Cable Length
The 10 m orange PVC cable provides greater installation flexibility for larger machines and production systems.
Straight M12 Connectors
The straight M12 connectors with A coding provide secure and convenient connection for compatible automation components.
Reliable Electrical Connection
Three 0.34 mm² conductors and gold-plated contacts provide dependable electrical connectivity.
Hygienic and High-Protection Design
EVT027 is designed for hygienic and wet food-industry applications. Stainless-steel locking, EPDM sealing and IP65/IP67/IP68/IP69K protection support reliable operation in demanding environments.
10 m extended cable
Straight M12 connectors
Three-core cable construction
Gold-plated contacts
High IP protection
Suitable for drag-chain applications
Food-processing machinery
Packaging equipment
Industrial automation
Sensor systems
Hygienic production lines
Machine control applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT027 |
| Product Type | Connection Cable |
| Order Code | VDOGH030VAS0010E03STGH030VAS |
| Cable Length | 10 m |
| Connector | 2 × M12 |
| Connector Design | Straight / Straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
