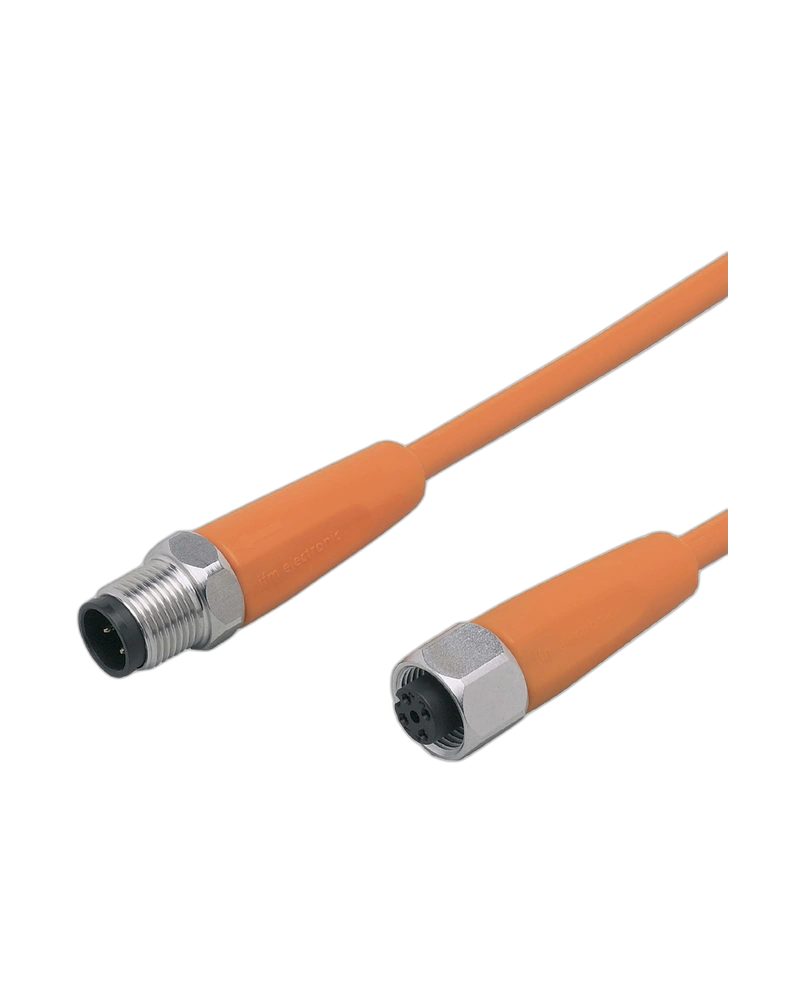

IFM EVT026 is a 5 m M12 connection cable designed for hygienic and wet food-industry environments. It features straight M12 connectors, gold-plated contacts, stainless-steel locking and high IP65 to IP69K protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connection
EVT026 provides reliable connectivity between sensors and automation components where a longer cable length is required.
5 m Cable Length
The 5 m orange PVC cable provides flexible routing for production machinery and industrial automation systems.
Straight Connector Configuration
Both M12 connectors are straight and A-coded, providing a conventional connection arrangement for industrial installations.
Reliable Industrial Construction
The cable incorporates gold-plated contacts, stainless-steel locking components and EPDM sealing.
Hygienic and Dynamic Applications
EVT026 is designed for hygienic and wet food-industry areas and is suitable for drag-chain applications. IFM specifies a broad temperature range and IP65/IP67/IP68/IP69K protection.
5 m extended connection
Straight M12 connectors
Gold-plated contacts
High IP protection
Stainless-steel locking
Suitable for drag-chain use
Food-processing machinery
Packaging lines
Industrial automation
Sensor installations
Hygienic production systems
Moving machine applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT026 |
| Product Type | Connection Cable |
| Order Code | VDOGH030VAS0005E03STGH030VAS |
| Cable Length | 5 m |
| Connector | 2 × M12 |
| Connector Design | Straight / Straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
