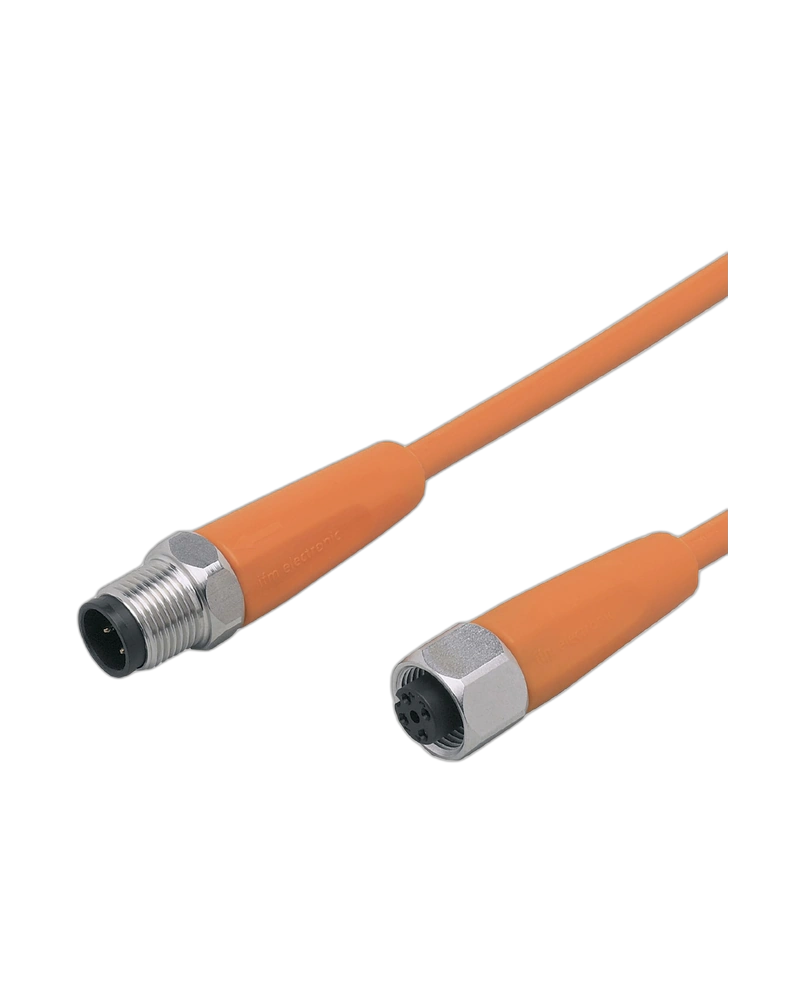

IFM EVT025 is a 2 m M12 connection cable with straight connectors for hygienic and wet food-industry environments. It features three conductors, gold-plated contacts, stainless-steel locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable 2 m Jumper Cable
EVT025 provides a dependable connection between compatible sensors and automation components in industrial systems.
Straight M12 Connectors
The cable uses straight M12 connectors with A coding, providing a standard and secure connection configuration.
Flexible Cable Construction
The 2 m orange PVC cable has a 4.9 mm diameter and three 0.34 mm² conductors for reliable industrial connectivity.
Hygienic and Wet-Area Design
EVT025 is designed for hygienic and wet areas in the food industry. Silicone-free construction and EPDM sealing support reliable operation.
Protection and Mechanical Strength
Gold-plated contacts and stainless-steel locking components provide dependable electrical and mechanical performance. High IP protection and drag-chain suitability support demanding applications.
2 m cable length
Straight M12 connectors
Three-core construction
Gold-plated contacts
High IP protection
Suitable for moving applications
Food-processing machines
Packaging equipment
Industrial automation
Sensor connections
Hygienic production lines
Machine control systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT025 |
| Product Type | Connection Cable |
| Order Code | VDOGH030VAS0002E03STGH030VAS |
| Cable Length | 2 m |
| Connector | 2 × M12 |
| Connector Design | Straight / Straight |
| Coding | A |
| Conductors | 3 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | 3, gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
