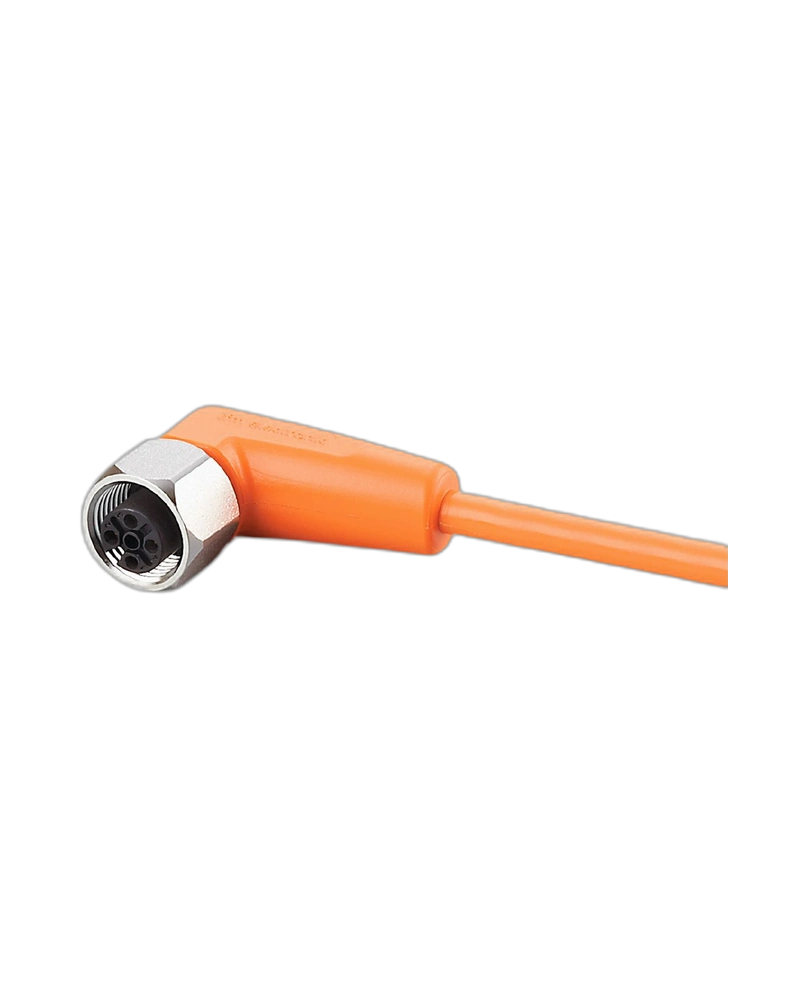

IFM EVT015 is a 25 m five-core M12 connecting cable with an angled socket for hygienic and wet food-industry environments. It provides reliable connectivity, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended M12 Connection
EVT015 provides a reliable angled M12 socket connection for industrial sensors and automation equipment.
25 m Cable Length
The 25 m orange PVC cable is suitable for larger machines and production installations requiring extended cable routing.
Five-Core Design
Five 0.34 mm² conductors support reliable five-pole M12 connectivity for compatible industrial applications.
Hygienic and Wet-Area Performance
The cable is designed for hygienic and wet areas in food-processing environments. Its silicone-free construction and EPDM sealing support demanding applications.
Dynamic Installation Capability
EVT015 is suitable for drag-chain applications, with a minimum flexible bending radius of 10 times the cable diameter and more than one million bending cycles.
25 m extended cable
Angled M12 socket
Five-core construction
Gold-plated contacts
High IP protection
Suitable for dynamic installations
Food-processing plants
Packaging machinery
Industrial automation
Sensor systems
Hygienic production equipment
Moving machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT015 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH050VAS0025E05 |
| Cable Length | 25 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
