IFM EVT014 is a 10 m five-core M12 connecting cable with an angled socket, designed for hygienic and wet food-industry environments. It provides durable connectivity, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

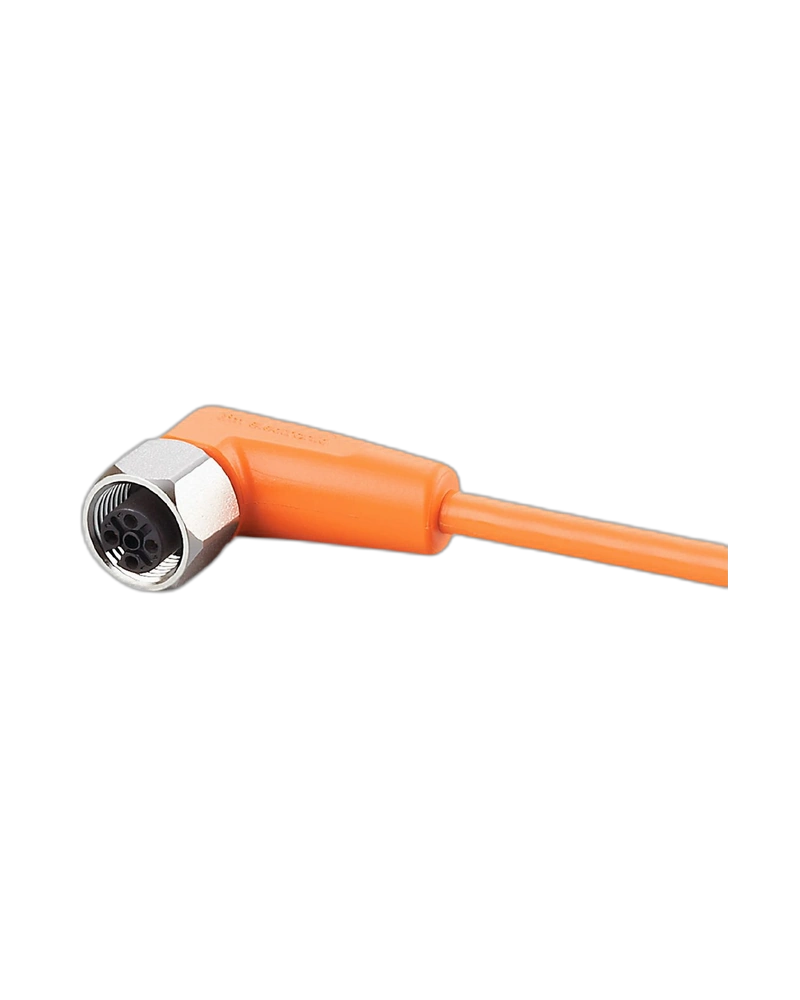

Angled M12 Socket
EVT014 uses an angled M12 socket for convenient cable routing in machines where straight cable routing may be difficult.
10 m Installation Length
The 10 m orange PVC cable provides additional reach for connecting sensors and automation components across larger installations.
Five-Core Construction
The five-core cable with 0.34 mm² conductors provides reliable connectivity for compatible five-pole M12 applications.
Hygienic Application
EVT014 is designed for hygienic and wet areas in the food industry and uses silicone-free materials.
Protection and Durability
Gold-plated contacts, stainless-steel locking components and EPDM sealing support dependable operation. IP65, IP67, IP68 and IP69K protection provides strong resistance to moisture and cleaning environments.
10 m cable length
Angled M12 socket
Five-core connection
Gold-plated contacts
High IP protection
Reliable stainless-steel locking
Food-processing equipment
Packaging machinery
Production systems
Industrial sensors
Hygienic automation
Wet-area applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT014 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH050VAS0010E05 |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
