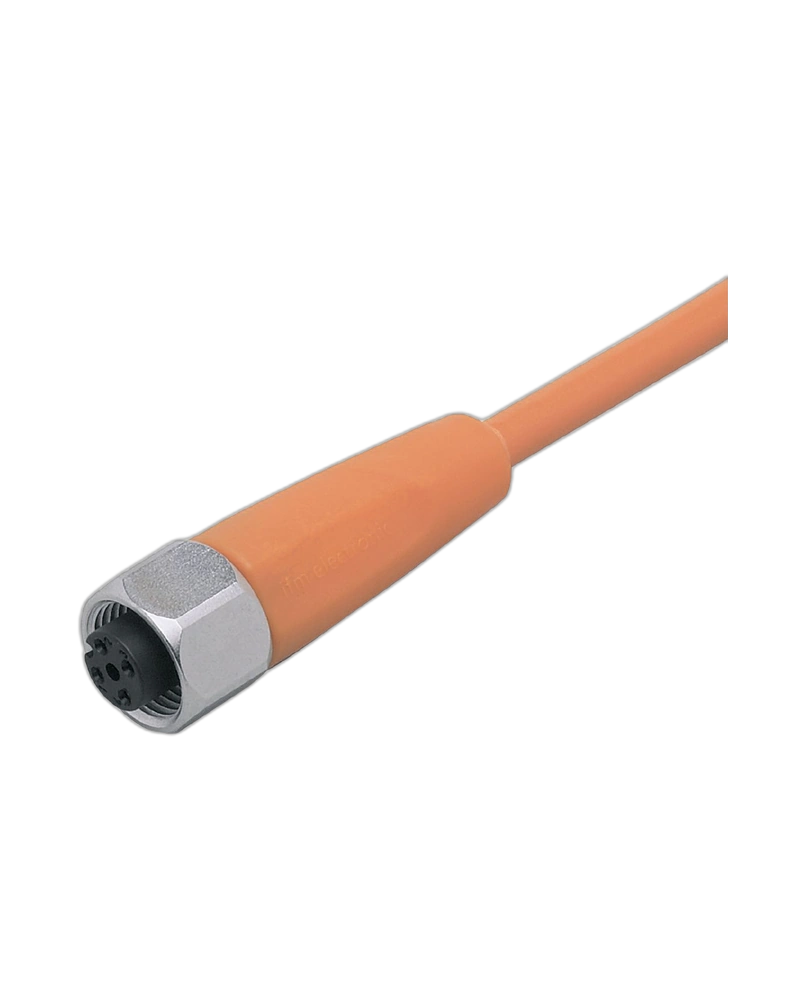

IFM EVT012 is a 25 m five-core M12 connecting cable with a straight socket, designed for hygienic and wet food-industry environments. It provides reliable connectivity, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Reliable M12 Connection
IFM EVT012 is a connecting cable with an M12 straight socket designed for dependable connections between sensors and industrial automation equipment.
Extended 25 m Cable
The 25 m orange PVC cable provides extended installation flexibility for larger machines, production systems and applications where connected components are positioned farther apart.
Five-Core Construction
The cable uses five 0.34 mm² conductors, supporting applications that require a five-pole M12 connection.
Hygienic Industrial Design
EVT012 is designed for hygienic and wet areas in the food industry. The silicone-free construction and EPDM sealing support reliable operation in demanding environments.
Durable Protection
Gold-plated contacts and stainless-steel locking components provide reliable electrical and mechanical performance. IP65, IP67, IP68 and IP69K protection helps withstand moisture and cleaning conditions.
25 m extended cable length
Five-core M12 connection
Straight socket configuration
Gold-plated contacts
High IP protection
Stainless-steel locking mechanism
Food-processing machinery
Packaging equipment
Industrial automation
Sensor connections
Hygienic production systems
Wet-area machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT012 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH050VAS0025E05 |
| Cable Length | 25 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 5.1 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
