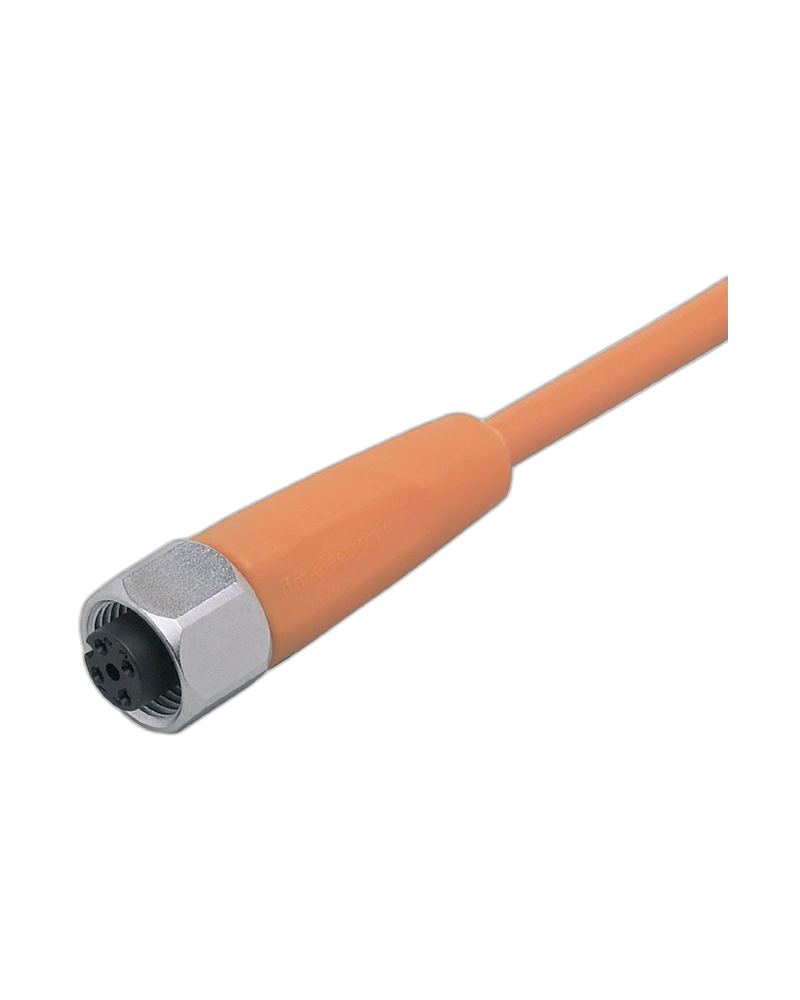

IFM EVT011 is a 10 m five-core M12 connecting cable with a straight socket, designed for hygienic and wet food-industry environments. It provides gold-plated contacts, durable locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Five-Pole M12 Connectivity
EVT011 is designed for applications requiring a five-core M12 connection. Its straight socket provides secure connection to compatible automation components.
10 m Cable Length
The 10 m orange PVC cable provides additional reach for larger machines, production systems and sensor installations.
Reliable Electrical Performance
Five 0.34 mm² conductors and gold-plated contacts support dependable electrical transmission. The stainless-steel locking mechanism provides secure mechanical coupling.
Hygienic Industrial Construction
The cable is designed for hygienic and wet areas in the food industry. EPDM sealing and silicone-free construction support demanding environments.
Designed for Dynamic Applications
EVT011 is suitable for drag-chain applications, with a minimum bending radius of 10 times the cable diameter, more than one million bending cycles and ±180°/m torsional strain.
10 m extended connection
Five-core M12 design
Straight socket
Gold-plated contacts
High IP protection
Suitable for drag-chain applications
Food-processing machinery
Packaging equipment
Industrial automation
Sensor connections
Hygienic production systems
Moving machine installations
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT011 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH050VAS0010E05 |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 5.1 mm |
| Contacts | 5, gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| Silicone Free | Yes |
| Tightening Torque | 0.6–1.5 Nm |
