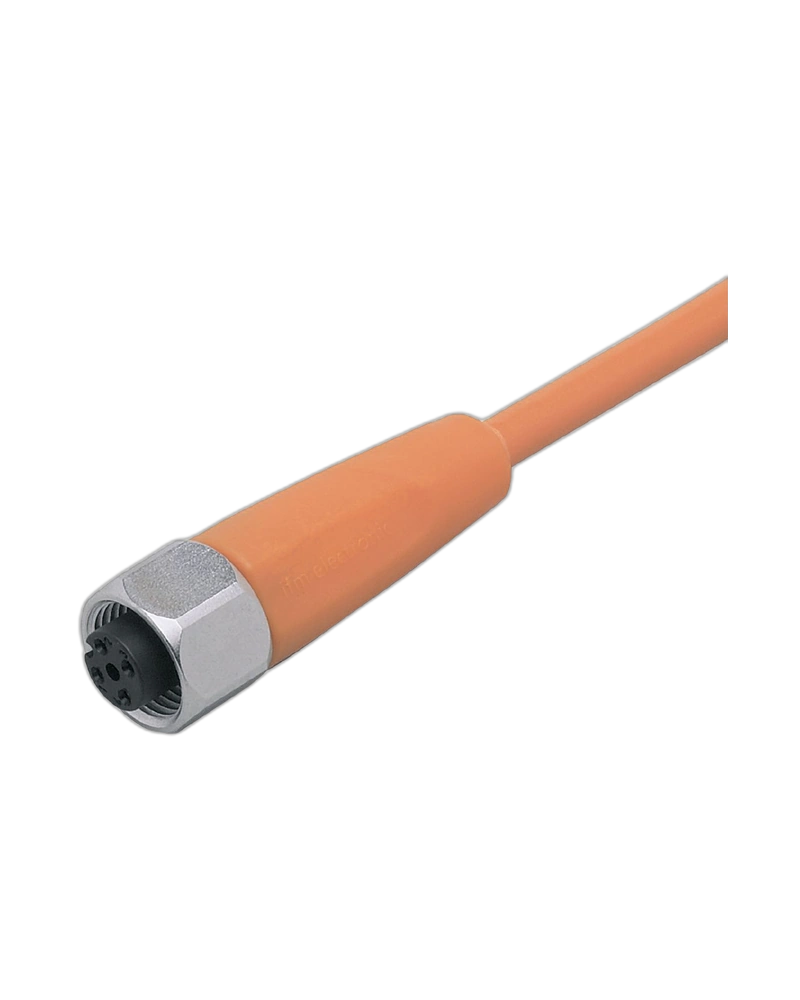

IFM EVT010 is a 5 m five-core M12 connecting cable with a straight socket for hygienic and wet food-industry applications. It features gold-plated contacts, stainless-steel locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Five-Core M12 Connection
EVT010 provides five electrical conductors for applications requiring a 5-pole M12 connection. The straight socket supports secure and convenient connection.
5 m Cable Length
The 5 m orange PVC cable offers flexible installation for sensors and automation components positioned at moderate distances.
Reliable Electrical Connection
Gold-plated contacts help maintain dependable electrical performance, while the stainless-steel locking mechanism provides secure mechanical coupling.
Hygienic Design
The cable is designed for hygienic and wet areas in food-industry environments. Silicone-free construction supports demanding production applications.
High Environmental Protection
IP65, IP67, IP68 and IP69K protection provides resistance against dust, water and intensive cleaning conditions. The cable is also suitable for drag-chain applications.
5 m cable length
Five-core connection
Straight M12 socket
Gold-plated contacts
High IP protection
Drag-chain compatible
Food-processing machinery
Packaging systems
Industrial sensors
Automation equipment
Hygienic production lines
Machine control systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT010 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH050VAS0005E05 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A |
| Conductors | 5 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 5.1 mm |
| Contacts | 5, gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Tightening Torque | 0.6–1.5 Nm |
