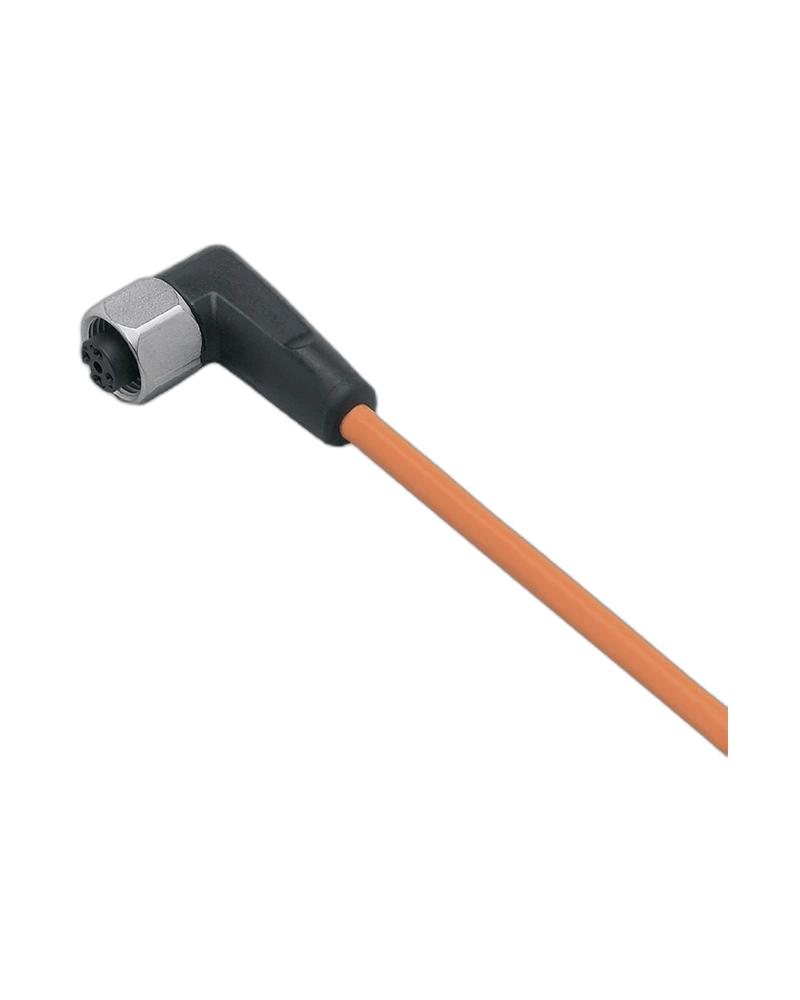

IFM EVT009 is a 25 m M12 connecting cable with an angled socket and LED indication. It provides PNP operation, gold-plated contacts, high IP protection and drag-chain suitability for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended LED Connection
EVT009 combines a long 25 m cable with an angled M12 socket and integrated status indication, providing both installation flexibility and convenient visual monitoring.
LED Status Monitoring
Two yellow switching-status LEDs and one green power LED provide clear visual information during machine operation.
PNP Electrical Design
The cable operates at 10–36 V DC with a current rating of 4 A, making it suitable for compatible industrial sensors and automation equipment.
Hygienic and Wet-Area Use
EVT009 is specifically designed for hygienic and wet areas in the food industry and is free from silicone.
Reliable Mechanical Performance
The stainless-steel locking system, EPDM sealing and IP65/IP67/IP68/IP69K protection support reliable performance in demanding environments.
25 m extended cable
Integrated LED indication
PNP electrical design
Gold-plated contacts
High IP protection
Suitable for moving machinery
Food-processing plants
Packaging lines
Industrial automation
Sensor monitoring
Hygienic machinery
Production equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT009 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0025E04 |
| Cable Length | 25 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Electrical Design | PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Status LEDs | 2 x Yellow |
| Power LED | 1 x Green |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| MTTF | 20,027 years |
