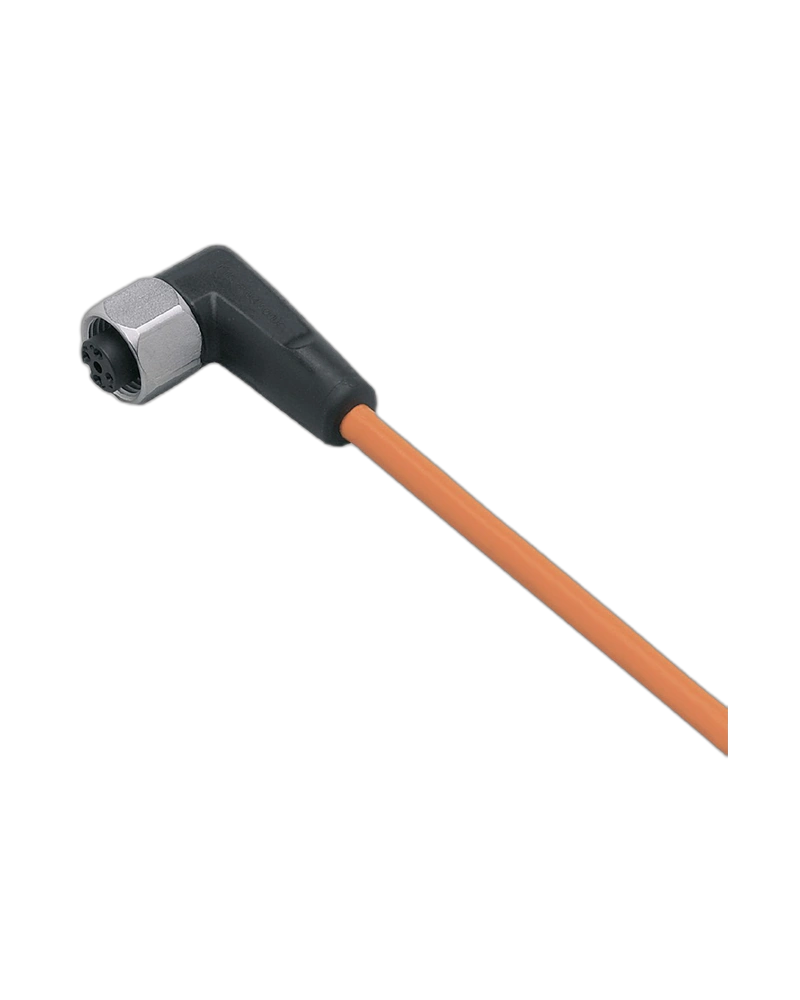

IFM EVT008 is a 10 m M12 connecting cable with an angled socket and LED status indication. It is designed for hygienic food-industry applications with PNP operation, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
LED-Enabled M12 Connection
EVT008 combines an angled M12 socket with visible status LEDs. Two yellow LEDs indicate switching status while a green LED indicates power availability.
10 m Cable Length
The 10 m orange PVC cable provides extended connection flexibility for industrial automation installations.
PNP Operation
The cable uses a DC PNP electrical design with 10–36 V DC operating voltage and a 4 A current rating.
Hygienic Construction
EVT008 is designed for hygienic and wet food-industry environments. It is silicone-free and uses EPDM sealing.
High Protection and Flexibility
IP65, IP67, IP68 and IP69K protection, combined with drag-chain suitability and more than one million bending cycles, makes it suitable for demanding moving applications.
10 m extended cable
Integrated LED indication
PNP operation
Gold-plated contacts
High IP protection
Suitable for drag-chain applications
Food-processing machinery
Packaging systems
Industrial sensors
Hygienic automation
Machine control systems
Production lines
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT008 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0010E04 |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Angled |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Status LEDs | 2 x Yellow |
| Power LED | 1 x Green |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Torsional Strain | ±180°/m |
| MTTF | 20,027 years |
