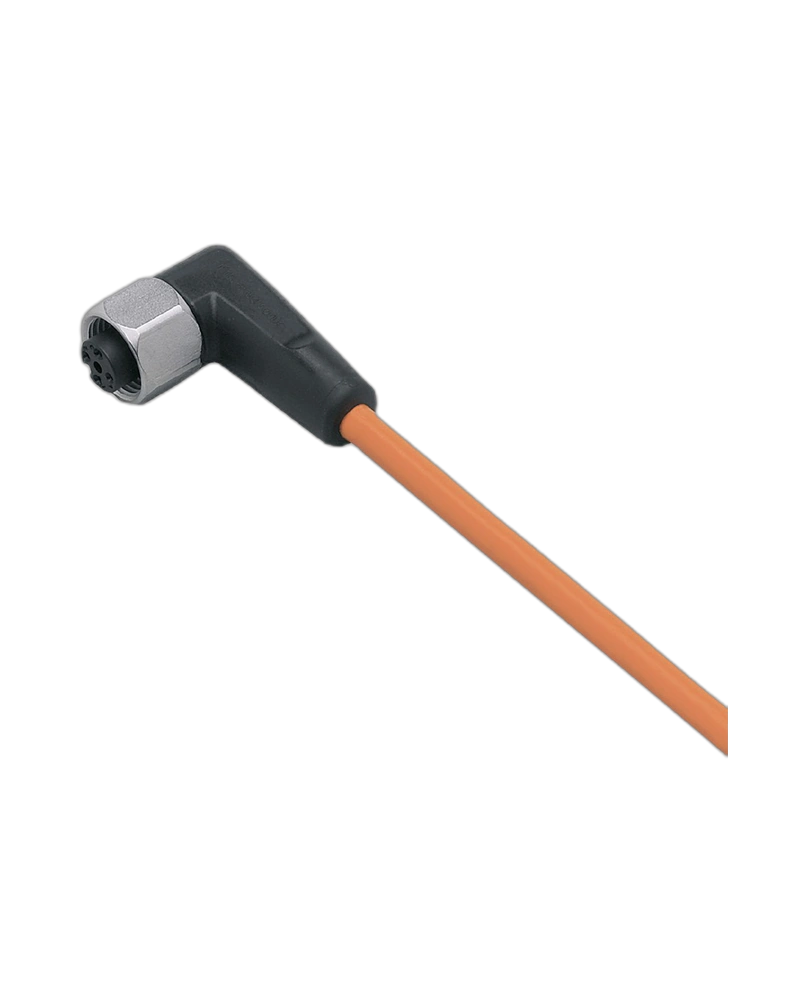

IFM EVT007 is a 5 m M12 connection cable with an angled socket and integrated LED indication. Designed for food-industry automation, it provides PNP operation, gold-plated contacts and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
M12 Connection with LED Indication
EVT007 provides a reliable angled M12 socket with integrated visual indicators. The LEDs allow users to quickly identify power and switching status.
5 m Cable Length
The 5 m orange PVC cable provides flexible routing between sensors and automation equipment.
PNP Electrical Design
The cable operates with 10–36 V DC and supports a current rating of up to 4 A, making it suitable for compatible industrial sensor connections.
Hygienic Application
EVT007 is designed for hygienic and wet areas in food-industry applications. The construction is silicone-free and uses EPDM sealing.
Industrial Durability
The cable provides IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications, with more than one million bending cycles.
Integrated LED status indication
5 m cable length
PNP electrical design
Gold-plated contacts
High IP protection
Drag-chain suitability
Food-processing machinery
Packaging equipment
Sensor monitoring
Hygienic automation
Production systems
Industrial control equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT007 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH043VAS0005E04 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Angled |
| Electrical Design | PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Status LEDs | 2 x Yellow |
| Power LED | 1 x Green |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Moving Temperature | 5 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| MTTF | 20,027 years |
