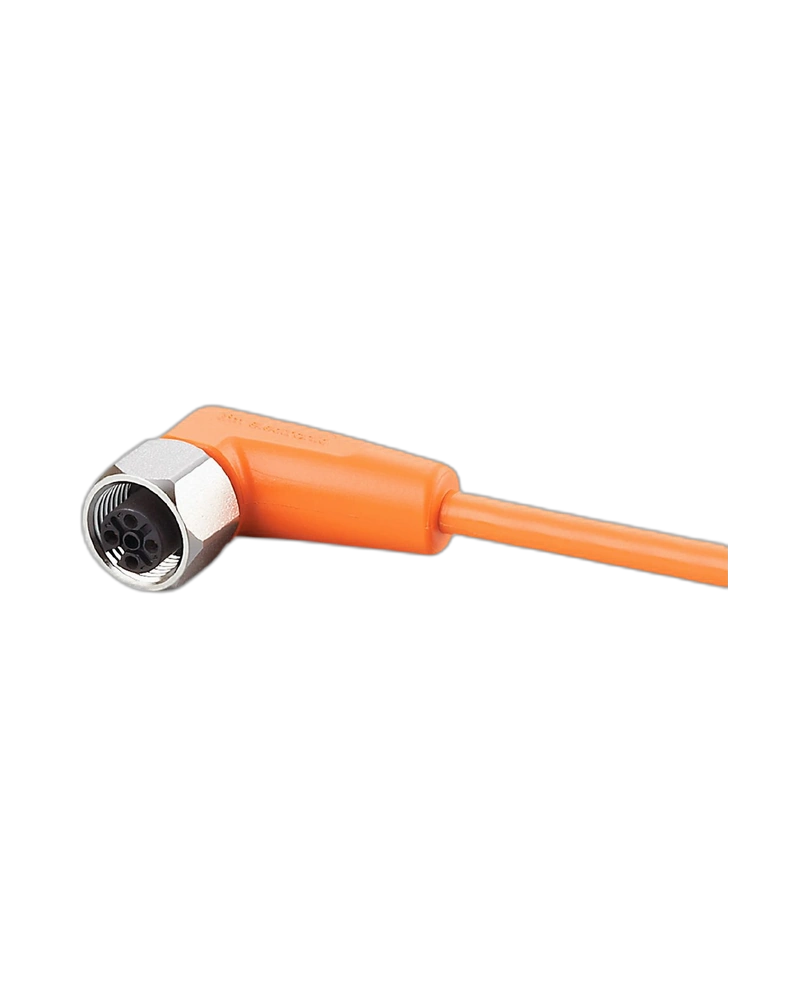

IFM EVT006 is a 25 m M12 connecting cable with an angled socket for hygienic and wet industrial environments. It combines four conductors, gold-plated contacts, stainless-steel locking and IP65 to IP69K protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Long-Distance Connection
EVT006 provides a 25 m cable length for applications where sensors and automation equipment are installed over longer distances.
Angled M12 Socket
The angled M12 socket supports convenient cable routing in machines and production systems where space is restricted.
Reliable Electrical Performance
The four-core PVC cable uses gold-plated contacts to support stable and reliable electrical connections.
Hygienic Design
EVT006 is suitable for hygienic and wet areas in the food industry and uses silicone-free construction.
Durable and Flexible
The stainless-steel locking mechanism provides reliable mechanical coupling. The cable is suitable for drag-chain use and supports more than one million bending cycles.
25 m extended cable
Angled M12 socket
Gold-plated contacts
High IP protection
Drag-chain compatible
Suitable for food-industry applications
Food-processing plants
Packaging machinery
Industrial production lines
Automation systems
Sensor networks
Hygienic machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT006 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH040VAS0025E04 |
| Cable Length | 25 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
