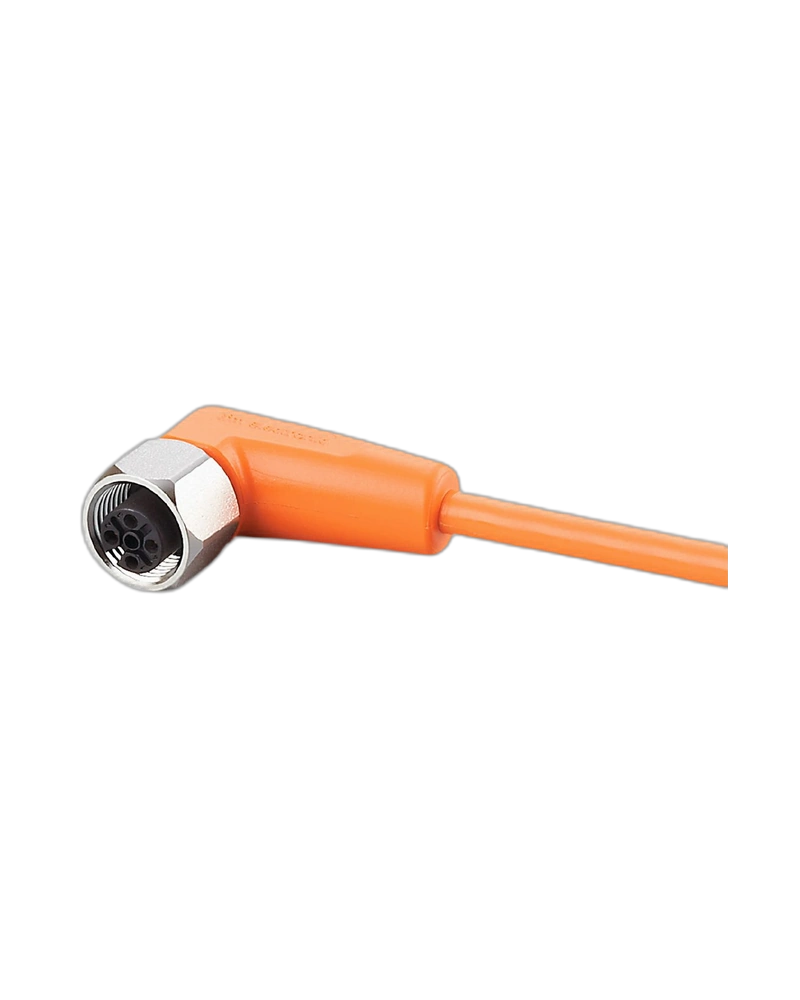

IFM EVT005 is a 10 m M12 connecting cable with an angled socket, designed for hygienic and wet food-industry applications. It provides four conductors, gold-plated contacts, stainless-steel locking and reliable environmental protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Connectivity
EVT005 provides a secure M12 connection with an angled socket configuration. This design is useful for compact machine layouts and cable routing around equipment.
10 m Installation Length
The 10 m orange PVC cable provides additional reach for connecting sensors and automation components across larger machines.
Reliable Signal Transmission
Four 0.34 mm² conductors and gold-plated contacts support reliable electrical signal transmission.
Food-Industry Compatibility
The cable is designed for hygienic and wet areas in food-processing applications. Its silicone-free construction supports demanding production environments.
High Protection
IP65, IP67, IP68 and IP69K protection helps protect the connection from dust, water and intensive cleaning processes.
10 m connection length
Angled M12 socket
Reliable electrical connection
Gold-plated contacts
High IP protection
Suitable for hygienic environments
Food-processing machines
Packaging systems
Industrial automation
Sensor installations
Production equipment
Wet-area applications
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT005 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH040VAS0010E04 |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Contacts | 4, gold-plated |
| Locking | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Tightening Torque | 0.6–1.5 Nm |
