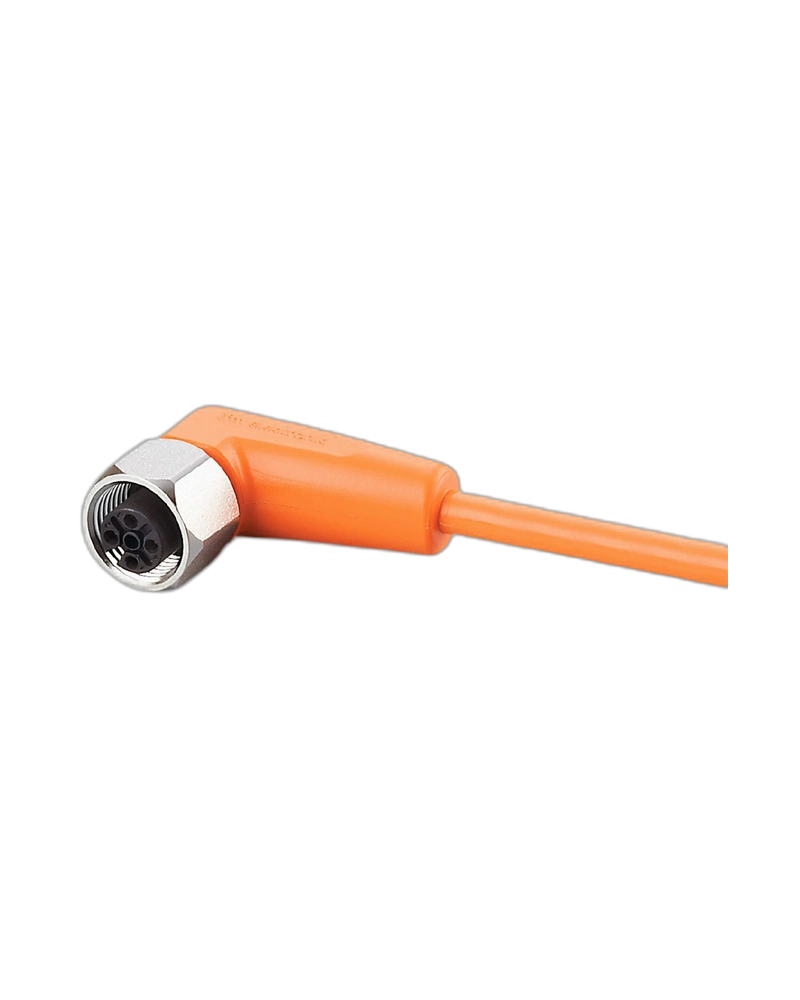

IFM EVT004 is a 5 m M12 connecting cable with an angled socket for hygienic and wet food-industry environments. It offers four conductors, gold-plated contacts, stainless-steel locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Socket
EVT004 features an angled M12 socket that is useful for installations where cable routing space is limited. The angled design helps guide the cable neatly along the machine.
5 m Cable Length
The 5 m orange PVC cable offers flexible installation for sensors and automation equipment positioned at moderate distances.
Reliable Electrical Connection
Four 0.34 mm² conductors and gold-plated contacts support dependable electrical transmission for industrial automation systems.
Hygienic Construction
The cable is designed for hygienic and wet areas in the food industry. Silicone-free materials and EPDM sealing support reliable operation in demanding environments.
Protection and Durability
IP65, IP67, IP68 and IP69K protection helps protect against moisture and cleaning conditions. Stainless-steel locking components provide resistance to vibration and shock.
Angled M12 connection
5 m cable length
Gold-plated contacts
High IP protection
Suitable for limited installation space
Silicone-free construction
Food-processing equipment
Packaging machinery
Hygienic automation
Sensor connections
Industrial machinery
Washdown environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT004 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOAH040VAS0005E04 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PVC |
| Cable Colour | Orange |
| Contacts | Gold-plated |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Tightening Torque | 0.6–1.5 Nm |
