IFM EVT001 is a 5 m connecting cable with a straight M12 socket, designed for hygienic and wet food-industry applications. It features gold-plated contacts, PVC construction, stainless-steel locking and high IP protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

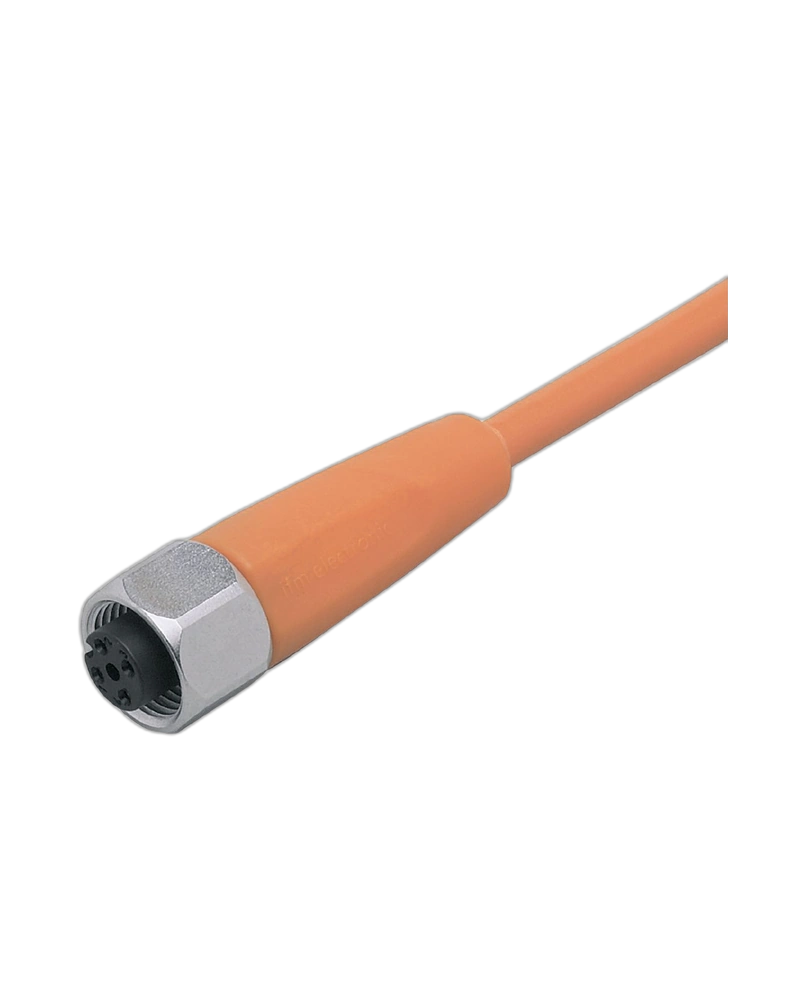

M12 Connecting Cable with Socket
IFM EVT001 is a connecting cable with an open cable end and straight M12 socket, designed for reliable connections between industrial equipment and sensors.
5 m Cable Length
The 5 m orange PVC cable provides flexible routing for automation installations where greater connection distance is required.
4-Core Cable Construction
The cable uses four 0.34 mm² conductors, making it suitable for industrial sensor and automation connections.
Reliable M12 Socket
The straight M12 socket features gold-plated contacts and stainless-steel locking components. The secure coupling helps maintain reliable electrical and mechanical performance.
Hygienic and Harsh Environment Performance
EVT001 is designed for hygienic and wet areas in the food industry. IP65, IP67, IP68 and IP69K protection supports use in demanding environments. It is also suitable for drag-chain applications.
5 m connection length
Straight M12 socket
Gold-plated contacts
Four-core cable construction
High IP protection
Stainless-steel locking mechanism
Suitable for drag-chain applications
Food-processing machinery
Industrial automation
Sensor connections
Packaging equipment
Hygienic production systems
Factory automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVT001 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH040VAS0005E04 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Type | Straight Socket |
| Coding | A |
| Cable Material | PVC |
| Cable Colour | Orange |
| Cable Diameter | 4.9 mm |
| Conductor | 4 x 0.34 mm² |
| Contacts | Gold-plated |
| Locking Material | Stainless steel 316L / 1.4404 |
| Sealing | EPDM |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to 100°C |
| Drag Chain Suitable | Yes |
| Bending Cycles | >1 million |
| Silicone Free | Yes |
| Tightening Torque | 0.6–1.5 Nm |
