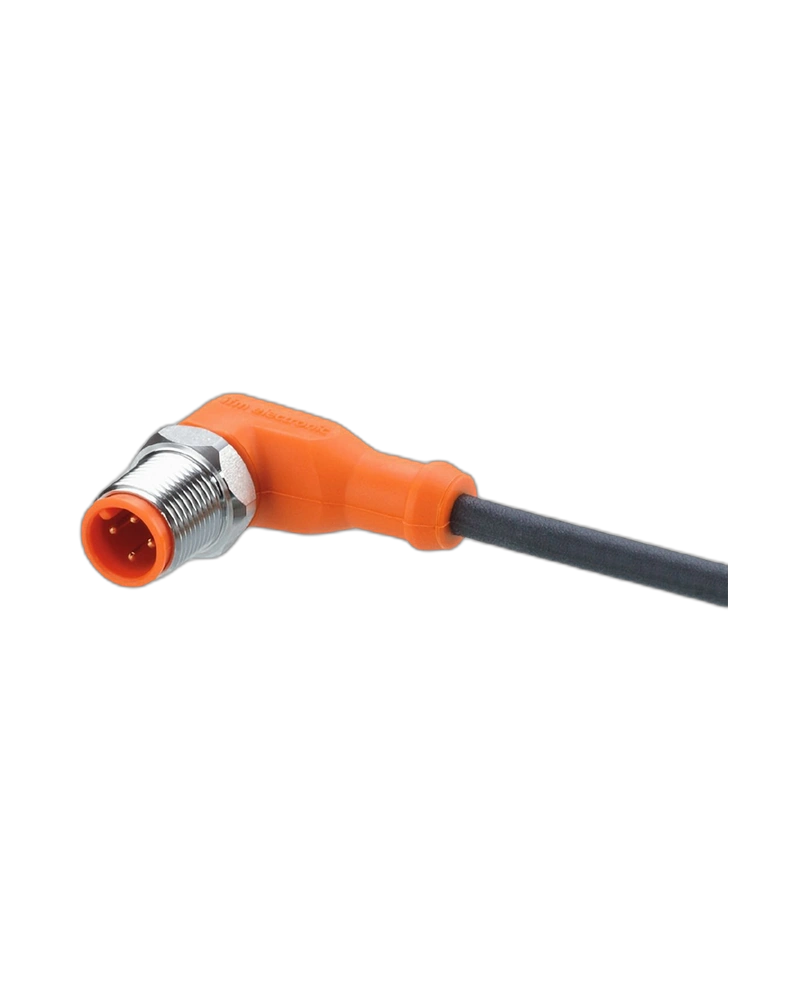

IFM EVM088 is a 5 m connecting cable with an angled M12 plug and four-core PUR cable. It provides reliable connectivity while allowing practical cable routing in mobile machinery and harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Angled M12 Plug
The angled M12 plug provides improved cable routing in installations where space around the connection point is restricted. It helps reduce unnecessary cable bending near the connector.
5 m Cable Length
The 5 m cable provides flexible reach between sensors and automation components. It is suitable for medium-distance industrial connections.
Four-Core Cable Design
The four-core 0.34 mm² construction supports reliable electrical and signal transmission for compatible automation components.
PUR Cable Construction
The black PUR cable provides mechanical durability and flexibility. It is suitable for demanding mobile applications where the cable may experience vibration and movement.
Reliable Connection Components
Gold-plated contacts help provide dependable electrical conductivity, while the stainless-steel locking mechanism helps keep the connector secure.
High Protection and Dynamic Suitability
The cable supports demanding industrial applications and is suitable for drag-chain installation. It is resistant to vibration, shock, temperature fluctuations, salt spray, oils and coolants.
Provides space-saving angled connection
Offers practical 5 m cable length
Supports reliable four-core transmission
Provides durable PUR construction
Suitable for dynamic cable routing
Resists oils and coolants
Mobile machinery
Industrial automation systems
Compact machine installations
Sensor and actuator connections
Machine control equipment
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM088 |
| Product Type | Connecting Cable with Plug |
| Order Code | ASTAH040VAS0005H04 |
| Cable Length | 5 m |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitable | Yes |
| Bending Cycles | >5 million |
| Silicone Free | Yes |
| Halogen Free | Yes |
