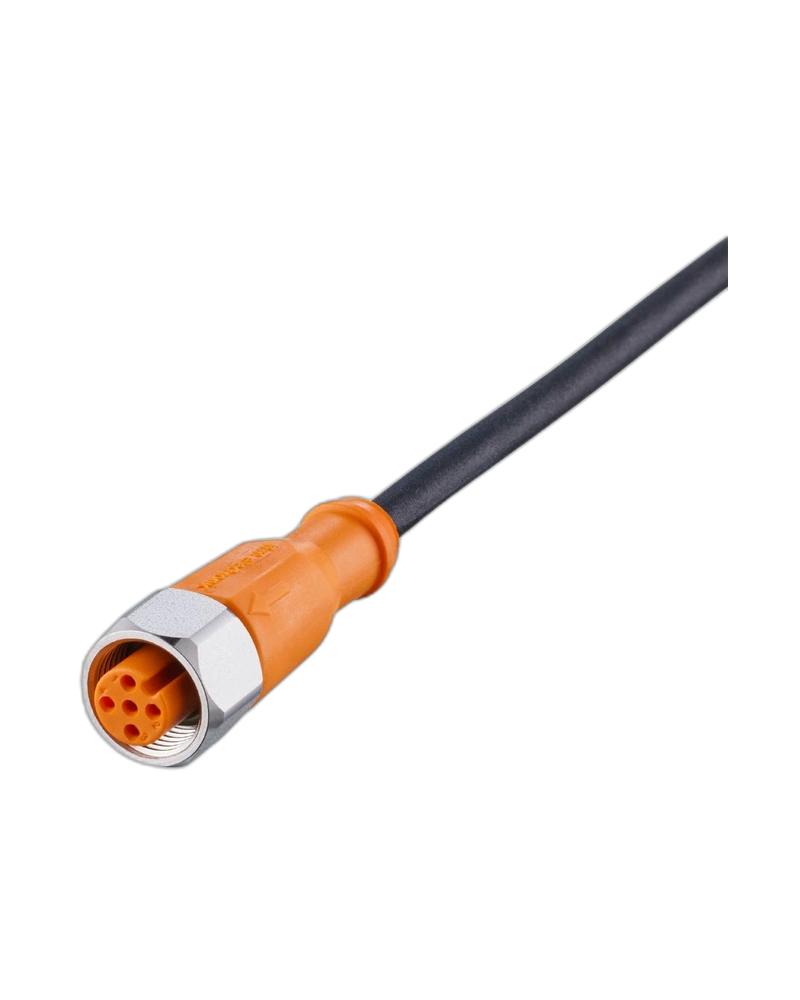

IFM EVM079 is a 15 m connecting cable with a straight M12 socket and four-core screened PUR cable. It provides extended connectivity, reliable signal transmission and strong environmental resistance for mobile machinery and harsh industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Socket
The straight M12 socket provides a reliable interface for compatible sensors and automation equipment. It supports straightforward installation and cable routing.
15 m Extended Cable Length
The 15 m cable provides extended reach for larger industrial machinery and distributed sensor installations. It reduces the need for additional extension connections.
Screened Four-Core Construction
The screened four-core cable supports dependable signal transmission and helps reduce electrical interference. It is suitable for automation applications where stable communication is important.
PUR Cable Durability
The black PUR cable provides mechanical strength and flexibility for industrial applications. It supports movement and repeated bending in dynamic installations.
Gold-Plated Contacts
Gold-plated contacts support reliable electrical conductivity, while the stainless-steel locking components help maintain a secure connection during operation.
Drag Chain Performance
The cable is suitable for drag-chain applications, with more than two million bending cycles and resistance to vibration, shock, salt spray, oils and coolants.
Provides extended 15 m connectivity
Offers reliable straight M12 connection
Supports screened four-core transmission
Helps improve signal reliability
Suitable for drag-chain applications
Provides durable industrial performance
Mobile machinery
Industrial automation systems
Long-distance sensor connections
Machine control installations
Dynamic cable routing
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM079 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH040VAS0015C04 |
| Cable Length | 15 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Cable Type | Screened |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitable | Yes |
| Bending Cycles | > 2 million |
| Travel Speed | Up to 3.3 m/s |
| Silicone Free | Yes |
| Halogen Free | Yes |
