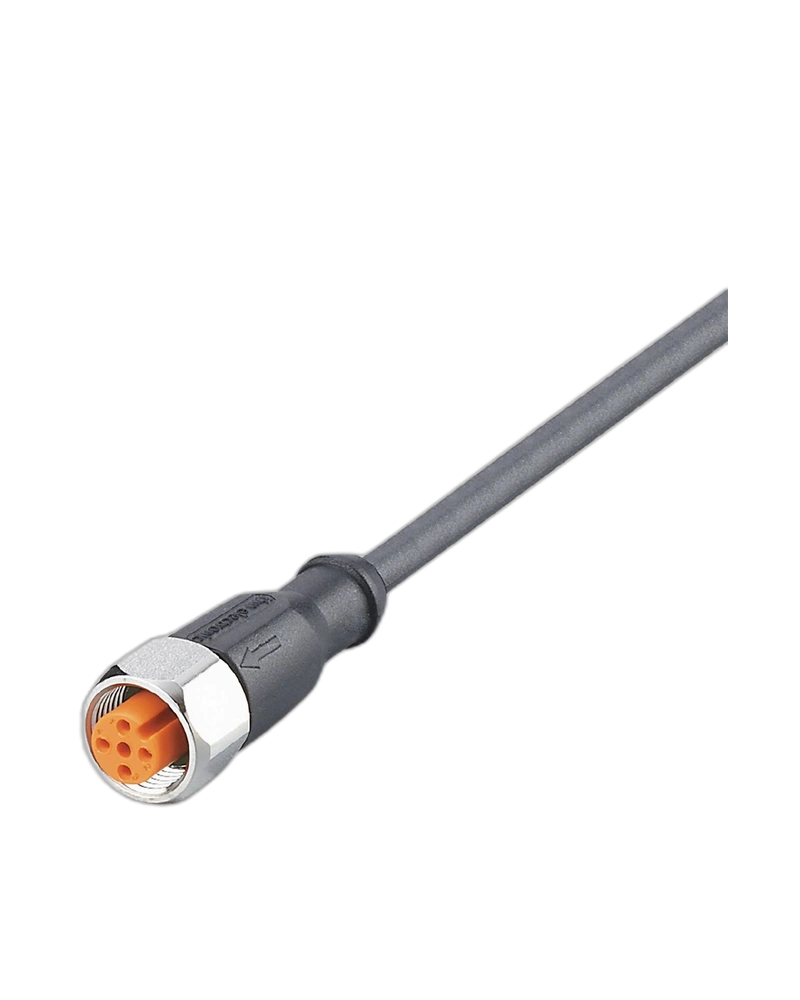

IFM EVM070 is a 10 m connecting cable with a straight M12 socket and four-core PUR construction. It is designed for mobile applications and harsh industrial environments, providing reliable connections with high environmental protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Straight M12 Connection
The straight M12 socket provides a secure connection between compatible sensors and automation components. It supports simple cable routing and convenient installation.
10 m Cable Length
The 10 m length offers extended flexibility for industrial machinery. It is suitable when sensors and automation components are positioned farther apart.
Four-Core Electrical Design
Four 0.34 mm² conductors provide dependable signal and electrical transmission. The cable supports reliable connections for compatible industrial devices.
PUR Cable Construction
The black PUR cable provides mechanical strength and flexibility for demanding applications. It is suitable for mobile machinery and installations involving vibration.
Gold-Plated Contacts
Gold-plated contacts help provide stable electrical conductivity. Stainless-steel locking components help maintain connection security during machine operation.
High Protection and Dynamic Suitability
IP65/IP67/IP68/IP69K protection supports use in demanding environments. The cable is also suitable for drag-chain applications and resists oils, coolants, salt spray and temperature changes.
Provides extended 10 m connectivity
Offers secure M12 connection
Supports reliable four-core transmission
Provides durable PUR construction
Suitable for mobile applications
Offers high environmental protection
Mobile machinery
Industrial automation systems
Sensor installations
Machine control equipment
Dynamic cable routing
Harsh industrial environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVM070 |
| Product Type | Connecting Cable with Socket |
| Order Code | ADOGH046VAS0010H04 |
| Cable Length | 10 m |
| Connector | M12 |
| Connector Design | Straight |
| Coding | A-coded |
| Conductors | 4 x 0.34 mm² |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.9 mm |
| Contacts | Gold-plated |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -40 to 90°C |
| Moving Temperature | -25 to 90°C |
| Drag Chain Suitable | Yes |
| Silicone Free | Yes |
| Halogen Free | Yes |
